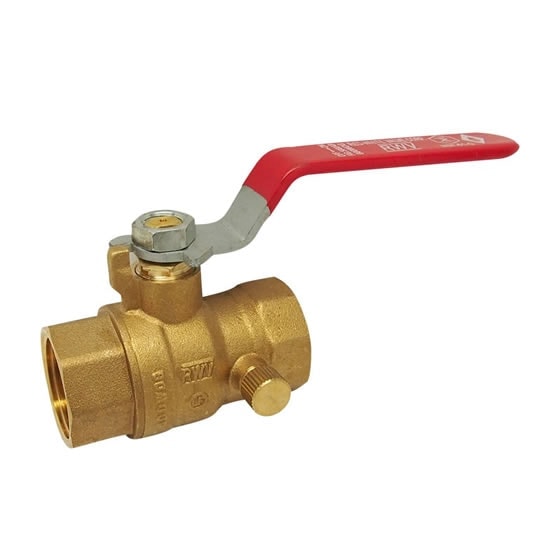

Red-White 5060AB Lead Free Brass Full Port Ball Valve with Drain – Threaded FNPT x FNPT
Ships Same Day
Regular price
$61.28
- ✔ In Stock — Ships Same Day or Next Business Day
- ✔ Trusted by contractors and industrial buyers
- ✔ Bulk pricing available — Request a Quote
Buying in bulk?
Contact us for contractor pricing or large quantity discounts →
Contact us for contractor pricing or large quantity discounts →
Couldn't load pickup availability
✔ In Stock – Fast Shipping from Multiple U.S. Warehouses
✔ Contractor-Grade Ball Valve – Built for Daily Use
✔ Reliable, No-Failure Operation
✔ Trusted by Pros – Not Consumer-Grade
High Demand Item – Frequently Reordered by Contractors
The Red-White 5060AB is a lead-free brass ball valve built for isolation in commercial, industrial, and mechanical piping systems. Red-White Valve Corp. manufactures this series for daily commercial and industrial service.
Physical characteristics: Lead-Free Brass body, Threaded FNPT x FNPT connections, available in 1/2"–1", rated 600 psi / 150 psi. Full technical data is in the spec sheet linked below.
Applications
- Isolation in commercial, industrial, and mechanical piping systems
- Commercial plumbing and mechanical systems
- Industrial process and utility piping
- Maintenance, repair, and replacement (MRO) work
- New construction and retrofit projects
Key Features
- Lead-Free Brass body
- Threaded FNPT x FNPT connections
- Sizes from 1/2"–1"
- Pressure rating: 600 psi / 150 psi
- Lead Free Brass Full Port Ball Valve with Drain
- Drain port
- Full port
- Blow-out proof stem
Specifications
| Brand | Red-White Valve Corp. |
| Series | 5060AB |
| Body Material | Lead Free Brass |
| Connection | Threaded FNPT x FNPT |
| Size Range | 1/2"–1" |
| Pressure Rating | 600 psi / 150 psi |
| Temperature Range | 600 psi from 15 °F to 160 °F 150 psi max. at 200 °F |
| Certifications | NSF/ANSI 61 & 372; ASME B1.20.1-NPT) Certified; MSS-SP-110; AB1953, NSF/ANSI/CAN 61 & 372 certified; ASTM B927 C28450; ASTM B927 C28450 8 |
| Spec Sheet | https://redwhitevalvecorp.com/pdfs/5060AB.pdf |
Frequently Asked Questions
Q: What sizes does the Red-White 5060AB come in?
A: This series is available in 1/2"–1". All available sizes and configurations are listed in the variant selector above.
Q: What material is the 5060AB made of?
A: The body is Lead-Free Brass. Full material specifications are on the spec sheet linked below.
Q: Do you offer contractor or bulk pricing?
A: Yes. Buy in volume and save, or contact us at sales@pvfpro.com for contractor pricing on quantity orders.
Q: Where can I find the full spec sheet and technical data?
A: The manufacturer spec sheet is linked in the Technical Documents section below.
Why Contractors Choose This Product
- Genuine Red-White Valve Corp. product – no substitutes
- Stocked in U.S. warehouses for fast turnaround
- Series-standard components for easy reorder and replacement
- Contractor-focused service with bulk pricing available
✔ In Stock – Ready to Ship
✔ Bulk Pricing Available
✔ Fast Shipping from Multiple U.S. Warehouses
✔ Built for Contractors, Not DIY
Technical Documents
| Document Type | Download |
|---|---|
| Product Spec Sheet | View / Download (PDF) |
