What Is a Strainer?

A strainer is a filter for pipe: a perforated or mesh screen basket catches debris — weld beads, scale, packing, rust — before it reaches valves, pumps, meters, and burners. Strainers are the cheapest insurance in a mechanical room; a clogged screen takes minutes to clean, while debris through a control valve or pump takes out equipment. PVFPro stocks Y-pattern and basket strainers from Legend Valve and Red-White Valve in brass, iron, and stainless steel.

Y-Strainers vs Basket Strainers

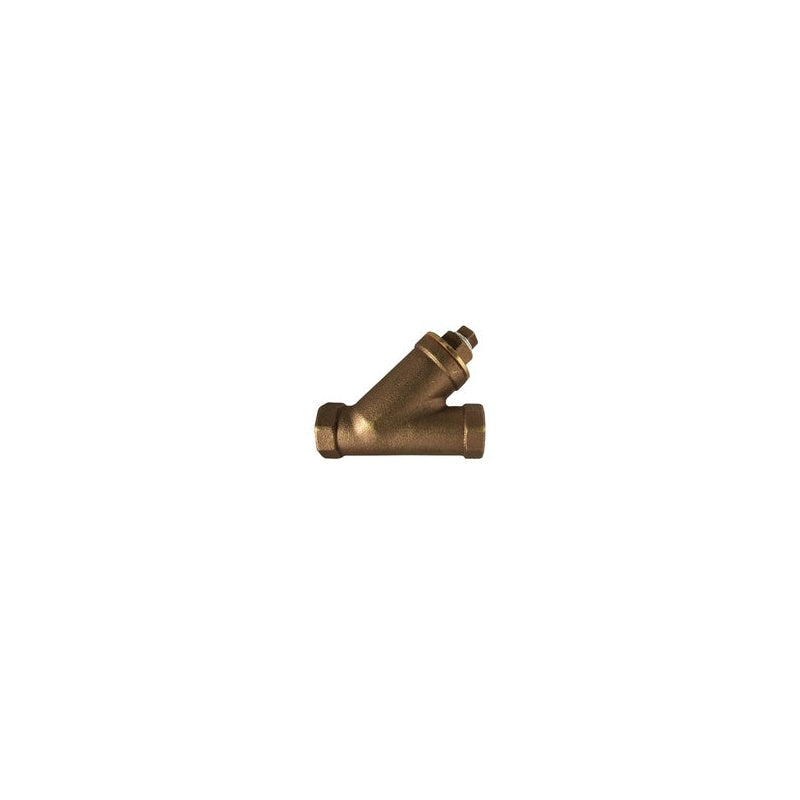

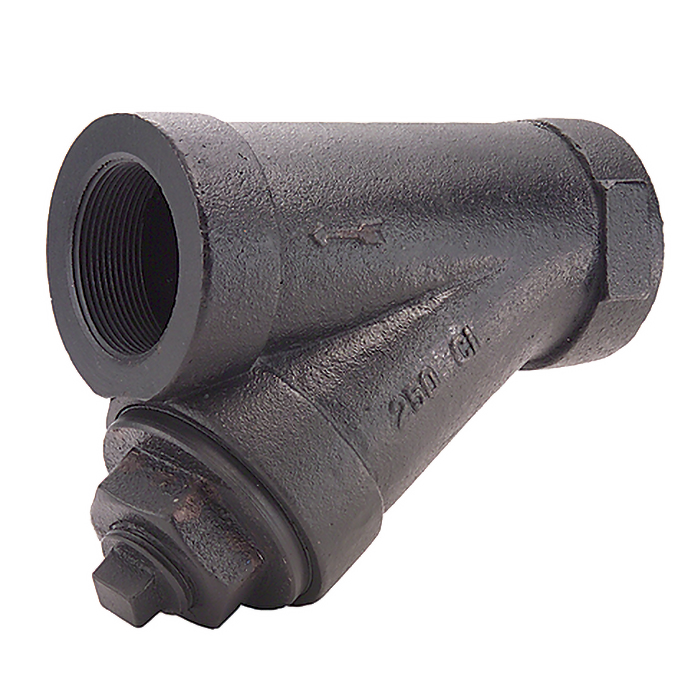

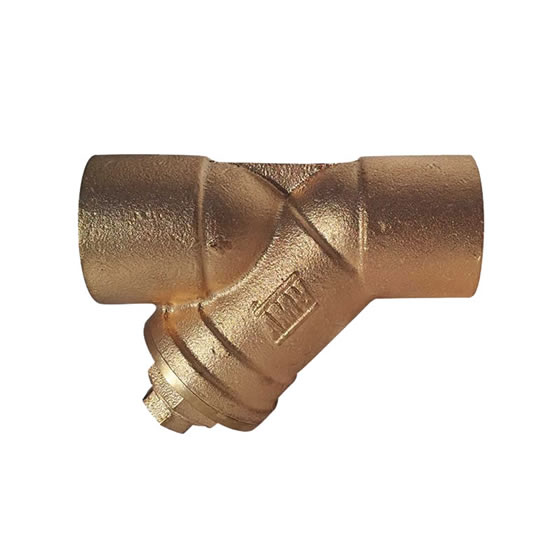

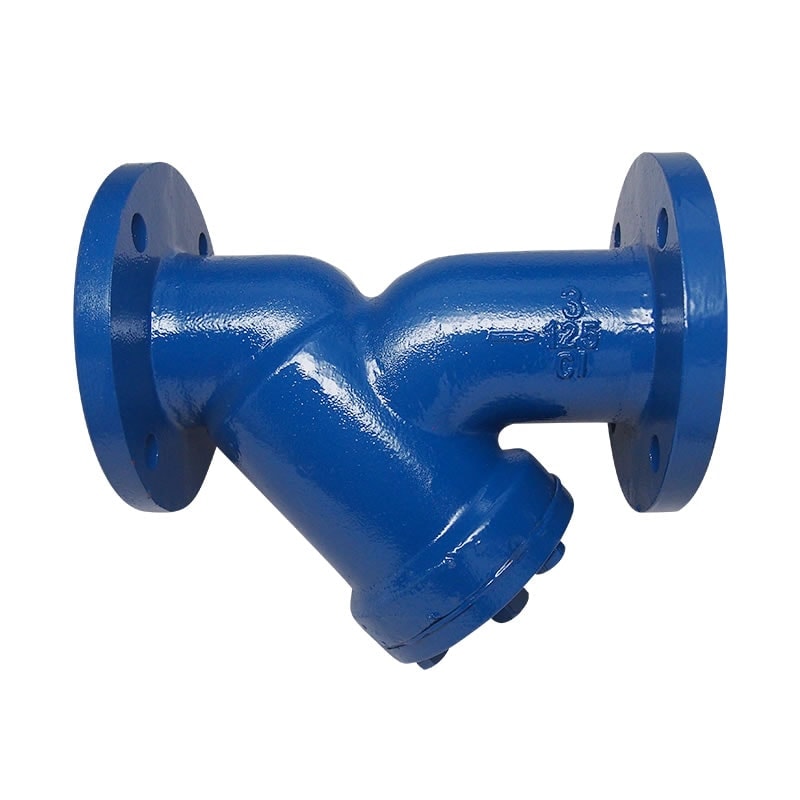

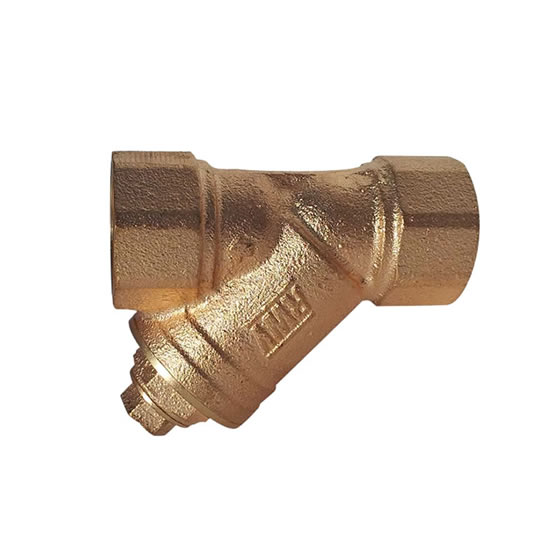

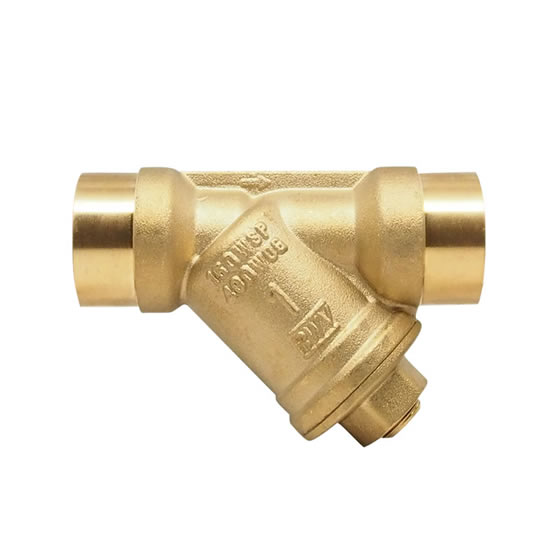

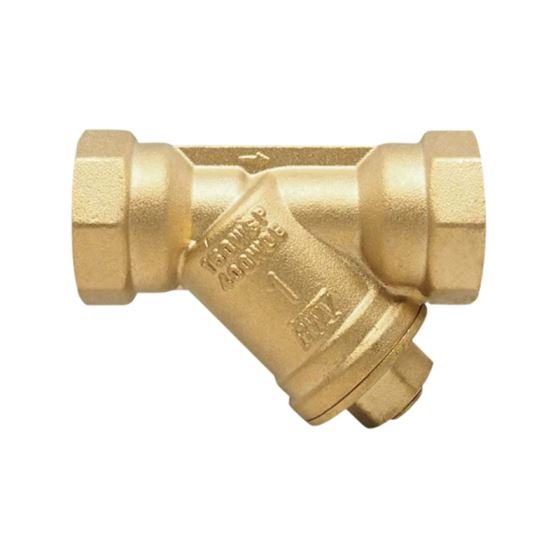

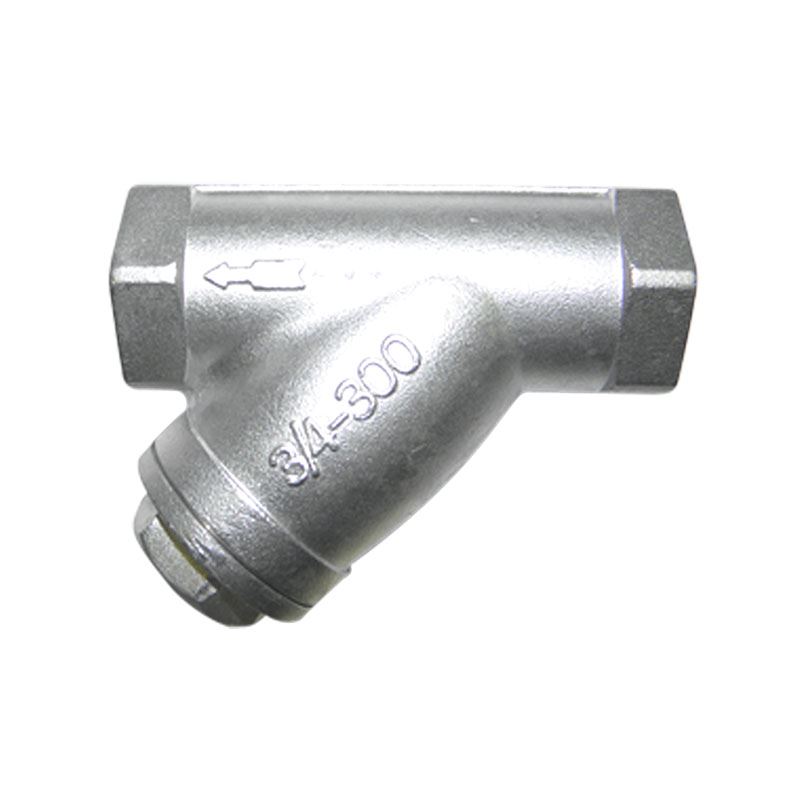

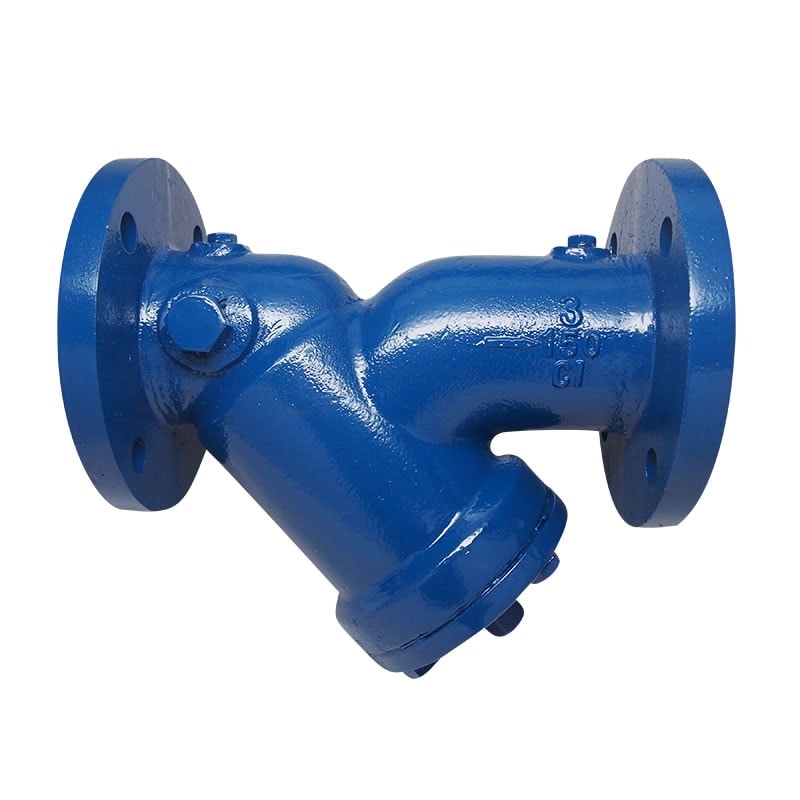

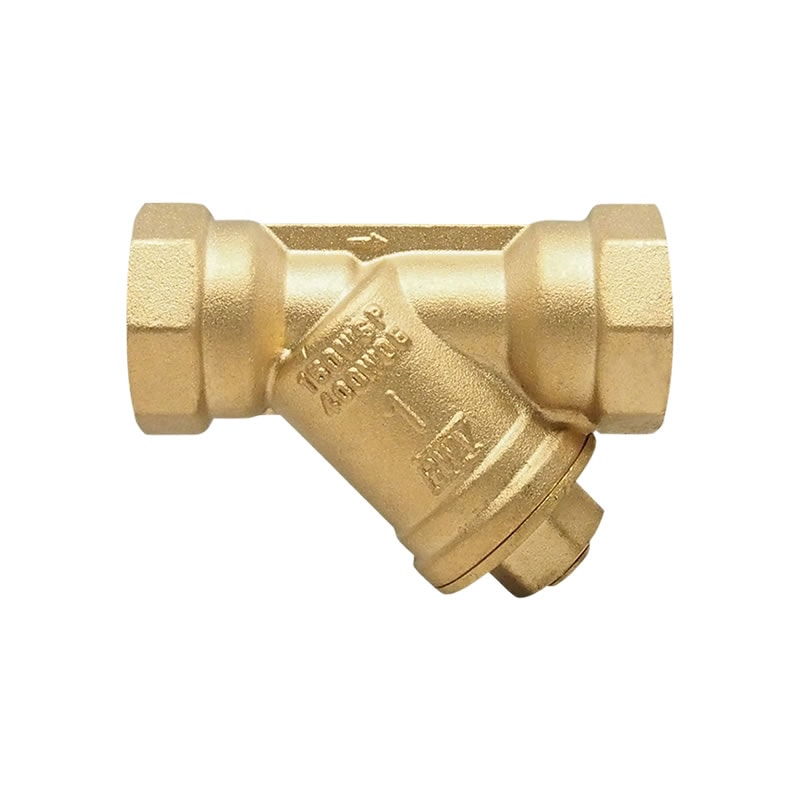

Y-strainer — The screen sits in an angled leg of a Y-shaped body, compact enough for tight runs and threaded systems. Cleanup is through a blow-off plug or removable cover; the screen can often be cleaned in place.
Basket strainer — A upright chamber with a large removable basket. Higher debris-holding capacity and easier servicing, sized where frequent cleaning or heavy debris loads are expected.

Both protect the same way: flow passes through the screen, debris stays behind, and the pipe downstream stays clean. Screens come in perforation or mesh sizes by series, so you can match the screen to the equipment being protected.

Applications

Upstream of control valves, solenoid valves, and PRVs — the No. 1 place for a strainer
Pump suction protection on commercial water systems
Water meter and backflow preventer inlets
Boiler and hydronic systems — catching scale and installation debris
Process and utility water lines where debris loads are expected
Sprinkler and standpipe supply piping (verify series suitability per listing)

How to Choose the Right Strainer

Pick the pattern. Y-strainer for compact lines and light debris; basket strainer for high debris loads and easy servicing.
Match the material. Brass for smaller potable lines, iron for larger utility service, stainless steel for corrosive or high-purity media.
Screen size. Match perforation or mesh to what you are protecting — finer screens protect instruments but clog faster. Screens are replaceable.
Blow-off or cover. Blow-off plugs allow in-place cleaning on Y-strainers; covers and baskets come off basket models for full removal.
Pressure class. Confirm the rating block on the product page against system conditions.

Technical Specifications Overview

Patterns stocked: Y-pattern and basket strainers.
Materials stocked: Brass, iron, and stainless steel depending on series.
Connections stocked: Threaded FNPT by series; flanged ends on larger sizes.
Screens: Stainless perforated or mesh screens, replaceable; sizes vary by series.
Standards: Lead-free certified series carry NSF/ANSI 61 and 372 listings; NPT threads to ASME B1.20.1. Confirm per product page.
Brands stocked: Legend Valve and Red-White Valve Corp.

Start-Up and Maintenance Program

New piping is a debris factory: weld balls, cutting oils, thread sealant, and mill scale all let go in the first weeks of service. That is why strainers earn their keep on start-up — check and clean screens daily for the first week of a new system, then stretch the interval as the pressure-drop trend flattens. Install a pressure gauge upstream and downstream on critical strainers and read the difference: a clean screen might show a psi of drop, a loaded one climbs steadily, and the climbing number — not the calendar — tells you when to clean. When blowing down a Y-strainer under pressure, crack the plug slowly and let pressure bleed before removing it fully. And keep a spare screen on the shelf for every strainer size on site; screens are consumables.

Frequently Asked Questions

Where exactly do I put a strainer? As close as practical upstream of what you are protecting — control valves, meters, pumps, and equipment inlets. On new systems, one at each mechanical-room entry catches construction debris.
How often do I clean the screen? On start-up of new piping, often. After the system settles, on a schedule set by pressure-drop trend. A rising pressure drop across the strainer is the signal to clean.
Strainer or filter? Same job, different media: strainers screen pipe debris with cleanable baskets; filters target finer suspended particles with replaceable media. For valve and pump protection, strainers are the standard.
Can a Y-strainer be mounted horizontally or vertically? Most Y-strainers install with the leg pointing down in horizontal runs so debris collects and can be blown off. Some series allow other orientations — check the product page.

Why Buy Strainers from PVFPro

In stock — fast shipping from multiple U.S. warehouses
Y-pattern and basket styles in brass, iron, and stainless
Specification data from manufacturer documents on every page
Bulk pricing available for package orders

Supply House Counter Notes

Order strainers by what they protect, not by habit. A pressure-reducing valve or solenoid wants a fine screen close-coupled upstream; a cooling tower or condenser loop wants a big basket with coarse mesh and easy access, because the debris load is constant. Match the blow-off or basket access to the room — a strainer that requires dismantling piping to service is a strainer that never gets serviced. On threaded Y-strainers, apply sealant to the plug and cap threads or they weep at pressure. And when sizing, resist the temptation to jump a pipe size down to save a few dollars: a strainer smaller than the line becomes a permanent restriction, and the pressure drop you saved shows up on the far side of the screen for the life of the system.
