Gate Valves — Brass, Bronze & Iron Main Shutoff Valves

Gate valves handle main shutoff duty on commercial water systems. PVFPro stocks threaded and flanged gate valves from Legend, Red-White, and Apollo — rising and non-rising stem styles in brass, bronze, and iron, ready to ship from multiple U.S. warehouses.

What Is a Gate Valve?

A gate valve isolates flow with a wedge-shaped disc that drops across the flow path. It is a multi-turn, open-or-closed valve — the slow, full-bore opening makes it the traditional choice for main shutoffs, boiler rooms, and buried or hard-access lines where a quarter-turn ball valve is not required and positive, tight closure on a straight-through passage matters. PVFPro stocks gate valves from Legend Valve, Red-White Valve, and Apollo in brass, bronze, and iron with threaded and flanged ends.

Rising Stem vs Non-Rising Stem

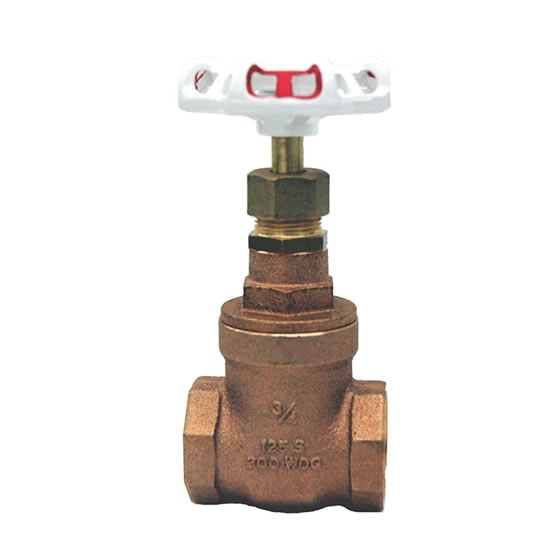

A rising stem gate valve shows you the stem lift when it opens — a visual position indicator, and the threads stay out of the media. A non-rising stem keeps its stem stationary and is more compact, which suits tight pits and wall-mounted installations. Both are stocked; choose based on space and whether you want visible indication.

Applications

Main water shutoffs in commercial and institutional buildings
Boiler rooms and mechanical rooms — isolation on supply and return mains
Fire protection and standpipe supply piping where a full bore, low pressure drop valve is required
Buried and in-wall service where slow, controlled operation prevents water hammer
Industrial utility and process isolation on water and non-corrosive media
Irrigation and site water distribution systems

How to Choose the Right Gate Valve

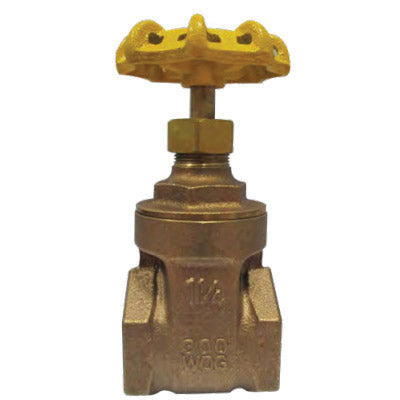

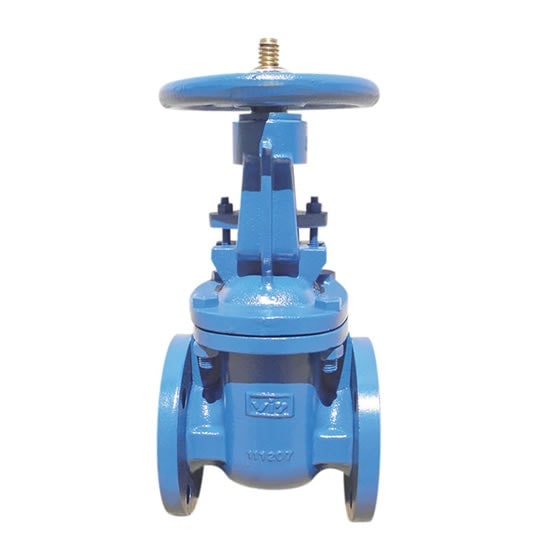

Material by service. Brass for smaller potable lines; bronze for heavier service and steam-rated series; iron for larger flanged water mains.
Connection type. Threaded FNPT for pipe systems up to moderate sizes; flanged for larger mains where bolting is standard.
Stem style. Rising stem when you want visible open/closed indication; non-rising for tight installations.
Pressure and temperature. Compare the valve’s WOG/WSP rating against your system — brass threaded series typically run 125 to 200 psi classes by series. Confirm the rating block on the product page.
On/off only. Gate valves throttle poorly and wear when partially open; size a ball valve or globe valve instead when flow control is needed.

Technical Specifications Overview

Operation: Multi-turn handwheel; wedge disc seats full-bore.
Connections stocked: FNPT threaded and flanged ends by series.
Materials stocked: Brass, bronze, and iron depending on brand and series.

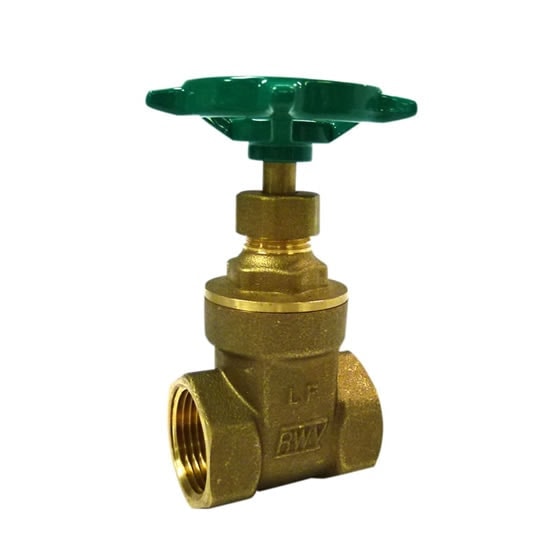

Standards: NPT threads to ASME B1.20.1 on threaded series; lead-free certified series carry NSF/ANSI 61 and 372 listings. Verify per product page.
Brands stocked: Legend Valve, Red-White Valve Corp., and Apollo.

Installation and Service Notes

Install with the flow arrow in the right direction where marked, and open the valve fully then back the stem off a quarter turn — the backseat takes load off the packing when the valve lives open. A weeping stem on an older gate valve is usually a packing nut that needs a gentle snug, not a replacement valve. On throttled service, remember the wire-draw problem: a gate cracked open focuses the full pressure drop across a thin sliver of opening, and the water cuts the disc and seat like wire over time. That is why gate valves are isolation-only. Cycle rarely-used mains valves on a maintenance schedule so the wedge does not seize in one position for good.

Frequently Asked Questions

Gate valve or ball valve for main shutoff? Both isolate. Gate valves give a full, straight-through bore and slow operation; ball valves give fast quarter-turn shutoff and a compact body. On new commercial work, ball valves have largely replaced gate valves on smaller lines; gate valves hold their place on larger mains and where slow closure matters.
Why is my gate valve hard to turn? Multi-turn operation is normal — the wedge travels the full bore height. If a rarely-used valve is seized, work it gently; forcing a stuck wedge can crack older brass bodies.
Can I throttle with a gate valve? No. A partially open gate vibrates and erodes, and the valve can lock in position. Isolation only.
Do gate valves restrict flow when open? A fully open gate valve presents an unobstructed bore — among the lowest pressure drops of any valve type.

Why Buy Gate Valves from PVFPro

In stock — fast shipping from multiple U.S. warehouses
Specification data from manufacturer documents on every product page
Multiple brands and stem styles in one place
Bulk pricing available for project and package orders

Supply House Counter Notes

Three wedge styles show up in gate valves: solid wedge, flexible wedge, and split wedge. Solid is simplest and commonest on smaller brass valves; flexible and split wedges compensate for thermal binding and pipe strain on larger and higher-temperature service. If a gate valve binds mid-travel on a hot line, that is the wedge, not the operator — back it off a quarter turn and re-approach rather than forcing the handwheel. On older installations, remember that decades of the same seated position make the wedge a permanent resident: schedule a cycle on maintenance visits so mains valves stay operable for the day they are actually needed.
