3-Way Ball Valves

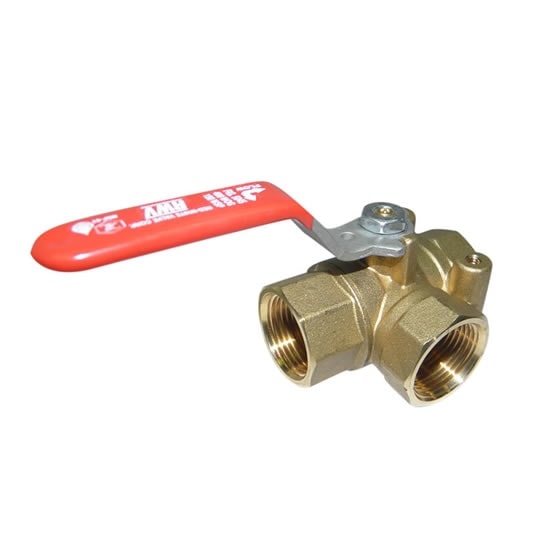

Red-White 5045 3-Way Ball Valve — Threaded FNPT

Red-White 5045 brass 3-way ball valve for diverting and mixing service — FNPT threaded ends, chrome-plated brass ball, PTFE seats, blow-out proof stem, 125# WSP / 400# WOG. In stock at PVFPro with fast shipping from multiple U.S. warehouses.

What Is a 3-Way Ball Valve?

A 3-way ball valve has three ports and a ball with a drilled passage that can route flow between them. It is the standard device for diverting a line between two destinations, mixing two sources into one, or selecting between circuits. Red-White offers the 5045 brass 3-way ball valve — FNPT x FNPT threaded ends (ASME B1.20.1), a chrome-plated brass ball, PTFE seats, and a blow-out proof stem. The brass body (ASTM B283 C37700) is rated 125# WSP / 400# WOG.

Applications

Diverting flow between two supply or return lines in commercial plumbing and mechanical systems
Zone selection on hydronic heating circuits
Bypass loops and test connections on equipment piping
Mixing service on low-pressure water lines

How to Choose a 3-Way Valve

Know your flow path. Confirm the port arrangement the system needs — diverting or mixing — before ordering; the ball passage determines what the valve can do.
Check the rating. The 5045 is rated 125# WSP / 400# WOG, suitable for water service within its pressure and temperature envelope.
Match your connections. FNPT threaded ends mate with standard NPT pipe and fittings.

Technical Specifications Overview

Body: Brass (ASTM B283 C37700), FNPT x FNPT threaded ends to ASME B1.20.1.
Ball: Chrome-plated brass with virgin PTFE seats; brass stem (ASTM B124 C37700) with blow-out proof design.
Ratings: 125# WSP / 400# WOG; 400 psi from 15°F to 160°F, 150 psi maximum at 366°F.
Sizes: 3/8" through 2".
Service: Diverting and mixing duty on compatible water systems.

Frequently Asked Questions

What sizes are available? The 5045 ships from 3/8" through 2" — select your size from the variants on the product page.
Can this valve be used as a mixing valve? 3-way ball valves handle both diverting and mixing duties on compatible water systems; verify the flow path suits your piping before installing.
What pressure and temperature will it handle? Rated 400 psi from 15°F to 160°F, and 150 psi maximum at 366°F, consistent with its 125# WSP / 400# WOG rating.
