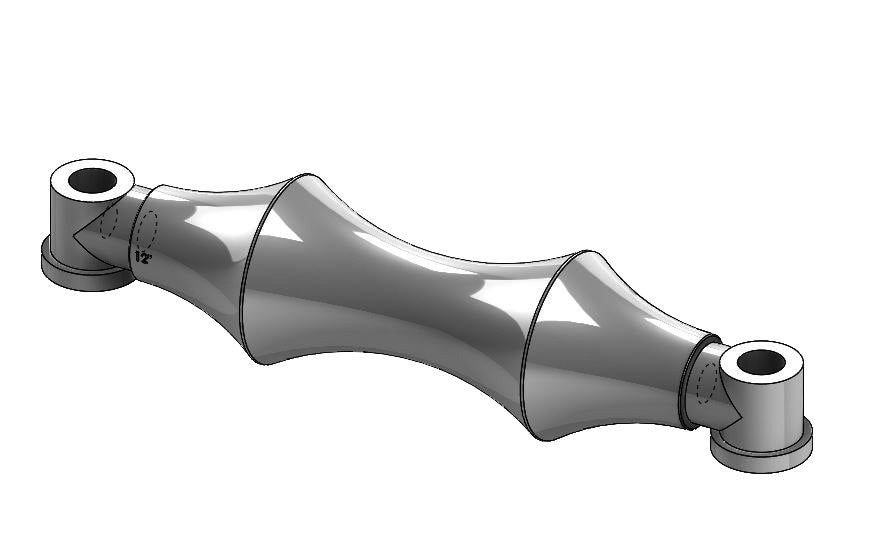

Two Rod Roller Plain Finish
- ✔ In Stock — Ships Same Day or Next Business Day
- ✔ Trusted by contractors and industrial buyers
- ✔ Bulk pricing available — Request a Quote
Contact us for contractor pricing or large quantity discounts →
Couldn't load pickup availability
Two-rod roller support for expanding pipe. The two-rod pipe roller carries horizontal pipe on a roll between two rods, letting the pipe travel as it expands and contracts. Plain finish.
- Pipe rides on a free-turning roll between two rods
- Accommodates axial movement from thermal expansion
- For heavier pipe and longer runs
- Plain/black uncoated steel
- Manufactured to MSS SP-58 pipe support standards
✔ Used by contractors and professionals
✔ Designed for reliable jobsite performance
Overview
A two-rod pipe roller carries pipe on a roll supported between two threaded rods, letting the pipe move along its axis with thermal expansion. The two-rod arrangement carries heavier loads than a single roller hanger. Plain finish for dry indoor service.
Common Uses
- Heavier steam and hot-water lines that expand and contract
- Large-diameter horizontal runs
- Mechanical rooms and industrial process piping
- Anywhere significant thermal movement must be accommodated
Key Features
- Free-turning roll between two rods
- Higher load capacity than single-roller hangers
- Plain uncoated steel
- Manufactured to MSS SP-58 pipe support standards
Specifications
| Type | Two-Rod Pipe Roller (Empire Fig. 273) |
| Finish | Plain (Uncoated) |
| Pipe Sizing | IPS |
| Standard | MSS SP-58 / SP-69 |
Load Ratings by Pipe Size
Maximum recommended load by pipe size, per Empire Fig. 273 engineering data. Match to your pipe's nominal size and apply your project's factor of safety.
| Pipe Size | Max. Rec. Load (lb) |
| 2" | 600 |
| 3" | 700 |
| 4–5" | 750 |
| 6–7" | 1,070 |
| 8" | 1,350 |
| 10" | 1,730 |
| 12" | 2,400 |
| 14" | 3,130 |
| 16" | 3,970 |
| 18" | 4,200 |
| 20" | 4,550 |
| 24" | 6,160 |
| 30" | 7,290 |
Listings & Standards
- MSS SP-58 / SP-69 pipe roller
- Not UL/FM listed (MSS-compliant pipe roller)
Frequently Asked Questions
When do I use a two-rod roller?
Use it for heavier pipe that must move with thermal expansion — the two-rod design carries more load than a single-roller hanger.
What size do I need?
Match the roller to your pipe's nominal size (IPS).
