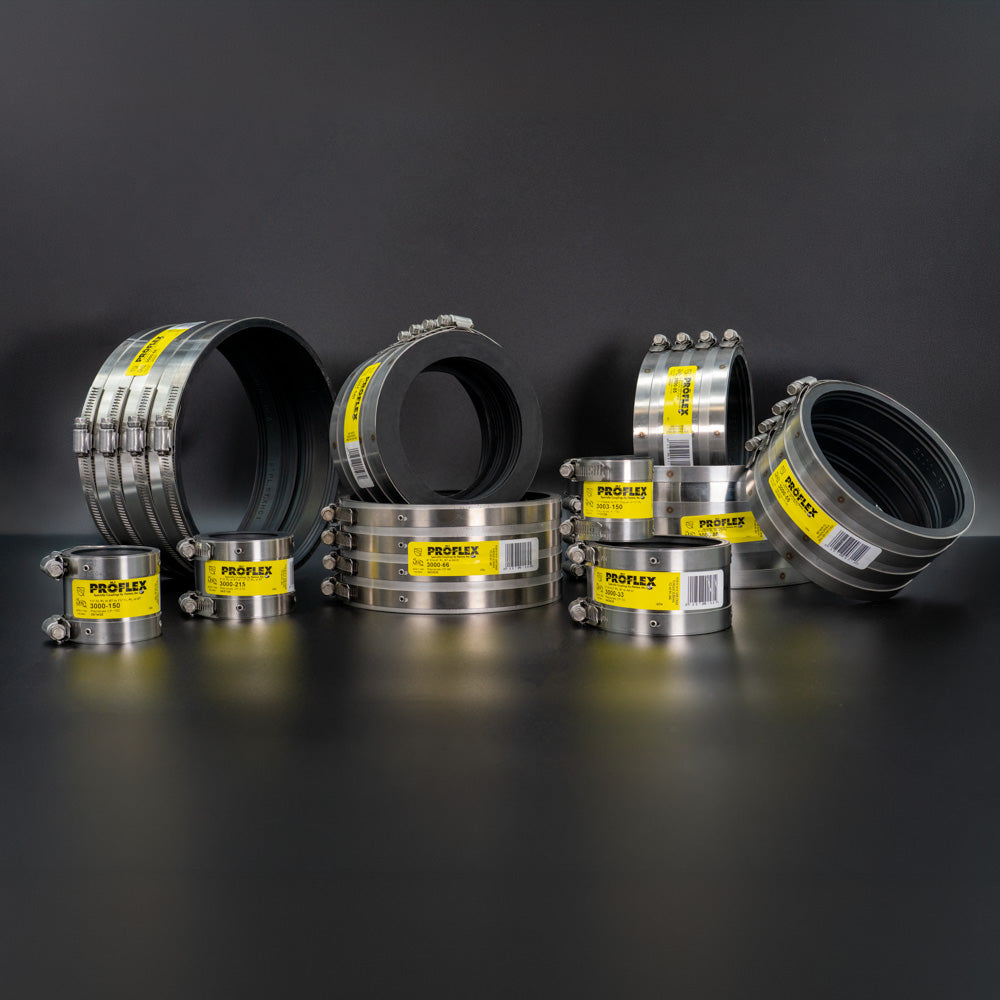

Fernco 3000 Proflex Shielded Coupling – Cast Iron to Plastic & Steel

In stock

SKU: 3000-150

(0)

Ships Same Day

$10.81

Express Checkout

✔ In Stock — Ships Same Day or Next Business Day
✔ Trusted by contractors and industrial buyers
✔ Bulk pricing available — Request a Quote

Buying in bulk?
Contact us for contractor pricing or large quantity discounts →

✓ Full stainless steel shield — rigid joint that resists shear, shifting & vibration
✓ Joins cast iron, plastic, steel & extra-heavy cast iron
✓ Neoprene gasket seals tight — no primers, glue or solvent odors
✓ Conforms to ASTM C1460, ASTM C564 & CSA B602 — passes inspection

High Demand Item – Frequently Reordered by Contractors

Fernco Proflex is the all-stainless shielded transition coupling for dependable above-ground pipe connections. A flexible neoprene sleeve seals the joint while a full .012″ type 301 stainless steel shield and clamp bands lock it rigid — so the connection resists shear forces, vibration, and shifting that would loosen an unshielded coupling.

From 1-1/2″ to 8″, the 3000 series joins cast iron, plastic, steel, and extra-heavy cast iron in straight and reducing sizes. Each gasket is marked with the part number and application, and the whole assembly is built from 300-series stainless for corrosion resistance.

Applications

Above-ground cast iron, plastic and steel DWV transitions
Connecting extra-heavy cast iron to standard pipe
Sewer, waste and vent connections needing a rigid, shielded joint
Repairs and remodels where a shielded coupling is specified

Key Features

Neoprene (synthetic rubber) gasket, marked with part number and application
.012″ type 301 stainless steel shield, 2.125″ wide
301 stainless clamp band and housing; 305 stainless 5/16″ hex screw
Rigid, shear-resistant joint for above-ground transitions
Installs with a standard nut driver or torque wrench — no primers or glue
Made in the USA — AIS and BABA compliant

Specifications

Gasket Material	Neoprene (synthetic rubber), conforms to ASTM C564
Shield	.012″ × 2.125″ type 301 stainless steel
Clamp Band & Housing	301 stainless steel
Clamp Screw	305 stainless steel, 5/16″ hex
Standards	ASTM C1460, ASTM C564, CSA B602
Installation Torque	60 in-lbs
Max Test Pressure	4.3 PSI (29.6 kPa)
Max Operating Temp	180°F
Origin	Made in USA, AIS & BABA compliant

Sizes & Connections

Part No.	Side A	Side B	Length	Mission® Eq.	Price
3000-150	1-1/2" CI, Plastic or Steel	1-1/2" CI, Plastic or Steel	2.13"	CP-150	$10.81
3000-215	2" CI, Plastic, Steel or XH CI	1-1/2" CI, Plastic or Steel	2.13"	CP-215	$14.37
3000-22	2" CI, Plastic, Steel or XH CI	2" CI, Plastic, Steel or XH CI	2.13"	CP-200	$10.77
3000-33	3" Cast Iron	3" Plastic, Steel or XH CI	2.13"	CP-33	$16.46
3000-44	4" Cast Iron	4" Plastic, Steel or XH CI	2.13"	CP-44	$17.98
3000-66	6" Cast Iron	6" Plastic, Steel or XH CI	3.00"	CP-66	$51.75
3000-88	8" Cast Iron	8" Plastic, Steel or XH CI	3.81"	CP-88	$70.43

Mission® equivalents are listed per Fernco’s published cross-reference for sizing convenience. Mission is a trademark of its respective owner; this listing is not affiliated with or endorsed by that company.

Best Used For

Above-ground DWV, sewer, waste and vent transitions
Connecting dissimilar pipe materials on a rigid, shear-resistant joint
Repairs and remodels where a banded coupling needs the strength of a shield
Commercial and residential plumbing where code calls for a shielded coupling

FAQ

Above ground or buried?

Proflex is engineered for above-ground transitions. For buried joints under heavy earth load, use a Fernco Strong Back RC shielded coupling instead.

What does the 3000 series connect?

Cast iron, plastic, steel, and extra-heavy cast iron to one another. For a transition to copper, use the Fernco 3001 series.

Why a shielded coupling?

The stainless shield keeps the joint rigid and resists shear, so the connection won’t sag or pull under vibration the way an unshielded rubber coupling can.

Why Contractors Choose This

Full stainless shield holds the joint rigid where rubber-only couplings flex
One coupling makes a clean material transition above ground
No primers, glue or cure time
Code-listed: ASTM C1460, ASTM C564, CSA B602
Made in the USA, AIS & BABA compliant

✓ .012″ type 301 stainless steel shield assembly
✓ 301 stainless clamp band & housing, 305 stainless screw
✓ Conforms to ASTM C1460, ASTM C564 & CSA B602
✓ Made in the USA — AIS and BABA compliant
