Fernco 1002 Clay Adapter Coupling – Clay to Cast Iron, Plastic & Steel

In stock

SKU: 1002-43

(0)

Ships Same Day

$9.99

Express Checkout

✔ In Stock — Ships Same Day or Next Business Day
✔ Trusted by contractors and industrial buyers
✔ Bulk pricing available — Request a Quote

Buying in bulk?
Contact us for contractor pricing or large quantity discounts →

✓ Adapts clay pipe to cast iron, plastic or steel — same or different sizes
✓ Positive seal against infiltration and exfiltration on sewer & drain lines
✓ 300-series stainless steel clamps — corrosion resistant, install with a nut driver
✓ Conforms to ASTM C1173, ASTM D5926 & CSA B602 — passes inspection

High Demand Item – Frequently Reordered by Contractors

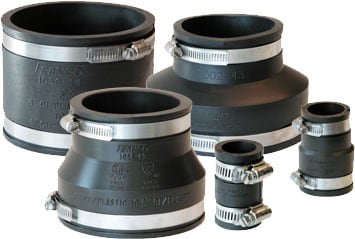

The Fernco 1002 is the clay-adapter version of Fernco’s standard flexible coupling — sized specifically to transition vitrified clay sewer pipe to cast iron, plastic, or steel. The stepped sleeve takes the larger clay outside diameter on one end and the smaller CI/plastic OD on the other, for a watertight no-hub joint with no primers or glue.

The sleeve is molded from elastomeric PVC that resists chemicals, UV, and normal sewer gases, locked down with 300-series stainless steel clamps. Sizes are listed clay side × cast iron/plastic side. Stocked 4″ through 24″ in straight and reducing configurations.

Applications

Connecting vitrified clay sewer pipe to cast iron, plastic or steel
Repairs and tie-ins on older clay sewer laterals and mains
Underground sewer and drain transitions
Reducing between a clay size and a different CI/plastic size
Fast no-hub connections without primers, glue or solvent cement

Key Features

Stepped elastomeric PVC sleeve sized for clay-to-CI/plastic transitions
Two 300-series stainless steel clamps, corrosion resistant
Leak-proof, root-proof, resistant to chemicals and sewer gases
Connects same or different pipe sizes and materials
Made in the USA — sizes 15″ and below are AIS and BABA compliant

Specifications

Sleeve Material	Elastomeric PVC
Clamps	300-series stainless steel
Connection	Clay (Side A) to cast iron / plastic / steel (Side B)
Standards	ASTM C1173, ASTM D5926, CSA B602, UPC
Installation Torque	60 in-lbs
Operating Temperature	-30°F to 140°F (non-consistent)
Origin	Made in USA (15″ and below AIS/BABA compliant)

Sizes & Connections (Clay × CI/Plastic)

Part No.	Connects	Price
1002-43	4" Clay × 3"	$9.99
1002-44	4" Clay × 4"	$9.05
1002-46	4" Clay × 6"	$23.23
1002-64	6" Clay × 4"	$22.72
1002-66	6" Clay × 6"	$19.35
1002-86	8" Clay × 6"	$35.95
1002-88	8" Clay × 8"	$29.77
1002-10-8	10" Clay × 8"	$50.57
1002-1010	10" Clay × 10"	$44.69
1002-1212	12" Clay × 12"	$52.15
1002-1515	15" Clay × 15"	$177.38
1002-1818	18" Clay × 18"	$392.62
1002-2424	24" Clay × 24"	$526.84

For exact outside-diameter ranges by size, see the Fernco dimensional drawings linked below.

Best Used For

Tying new cast iron or plastic into existing clay sewer pipe
Clay sewer lateral and main repairs
Transitions where clay OD doesn’t match the new pipe
Any sewer or drain joint needing a fast, code-compliant seal

FAQ

How are the sizes listed?

Clay side first, cast iron/plastic side second — for example, 6″ Clay × 4″ connects 6″ clay pipe to 4″ CI or plastic.

What does it connect?

Vitrified clay pipe to cast iron, plastic, or steel. For a buried joint under heavy load or shear, step up to the 1002RC Strong Back shielded version.

Can it go underground?

Yes — rated for below-ground sewer and drain use, conforming to ASTM C1173, ASTM D5926 and CSA B602.
