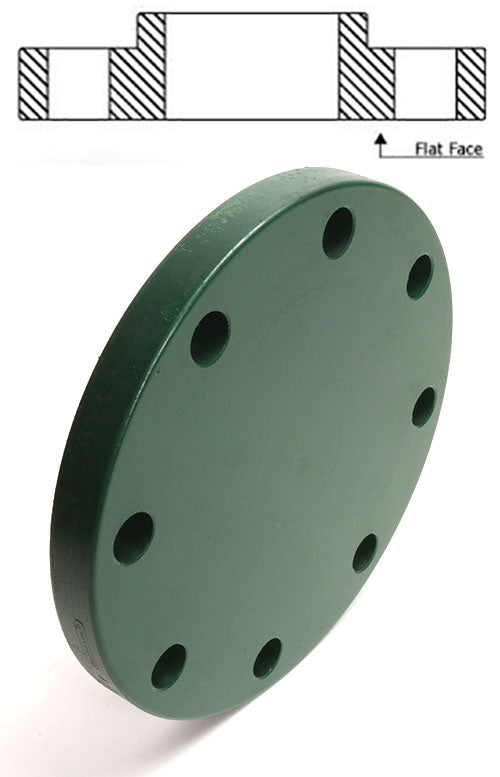

Weldbend Carbon Steel 300# Blind Flange
- ✔ In Stock — Ships Same Day or Next Business Day
- ✔ Trusted by contractors and industrial buyers
- ✔ Bulk pricing available — Request a Quote
Couldn't load pickup availability
Blind flange for bolted pipe connections. Blind flanges close off the end of a pipe, valve, or pressure vessel. Carbon Steel construction.
- Blind flange — 300# rated
- Carbon Steel body for durability and long service life
- Raised face per ASME B16.5 / B16.1 standard
- Mates with standard 300# flanges and flange fittings
✔ Used by contractors and professionals
✔ Designed for reliable jobsite performance
Overview
Weldbend Carbon Steel 300# Blind Flange is a blind flange for bolted piping connections on water, steam, and industrial fluid systems. Blind flanges seal the open end of a pipe, nozzle, or pressure vessel — used for pressure testing, future connections, or permanently closing a line end. Flanges are fabricated to ASME B16.5 (300#) dimensional standards.
Common Uses
- Connecting pumps, valves, and equipment to flanged piping systems
- Water, steam, and industrial process fluid piping
- Closing pipe ends for pressure testing or future connections
- HVAC mechanical piping systems
- Municipal water and wastewater systems
Key Features
- Blind design — seals pipe ends for testing or permanent closure
- Carbon Steel construction
- 300# pressure class rating
- Raised face per ASME B16.5 / B16.1
Specifications
| Material | Carbon Steel |
| Type | Blind Flange |
| Pressure Class | 300# |
| Face | Raised Face |
| Standard | ASME B16.5 |
Frequently Asked Questions
What is the difference between a 150# and 300# flange?
150# flanges are rated for lower pressures and are the standard for most commercial water and HVAC applications. 300# flanges have thicker walls and are rated for higher pressures and temperatures.
What is the difference between weld neck and slip-on flanges?
Weld neck flanges are welded at the neck and provide superior strength for high-pressure and cyclic service. Slip-on flanges slide over the pipe and are fillet-welded — faster to fit but not as strong as weld neck.
What gasket do I need with a raised face flange?
Raised face flanges typically use a full-face or ring gasket. Spiral wound or ring-type joint gaskets are used on higher-pressure applications.
Are flanges supplied with bolts and gaskets?
Flanges are typically supplied individually — bolts, nuts, and gaskets are ordered separately based on service requirements.
Why Contractors Choose This Product
- Blind flanges let you pressure-test a system before all connections are made — standard practice in commercial construction
- 300# rating covers the pressure range for most commercial and industrial water and steam applications
- Carbon Steel construction for reliable long-term service
- PVFPro stocks the full range of flange types, sizes, and pressure classes
Fewer reorders. Lower cost per job. Keeps your crew stocked.
