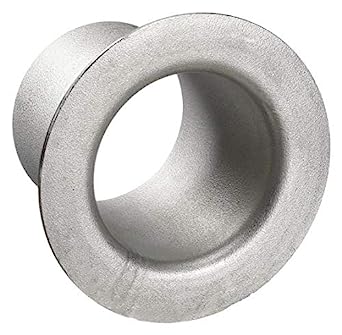

Stainless Steel Type C Stub End MSS (Import Non-China)

In stock
Ships Same Day
$0.00 inc. VAT

  • Type C – Type “C” Stub Ends are for use with standard Lap Joint Flanges and Slip on Flanges.
    The Lap of a Type "C" is flared leaving a rounded edge at the I.D. of the Lap.
    If required this radius can be made nearly square.
    The Lap thickness is 75% of the pipe wall.

    • Schedule 10 and 40 material is manufactured and tested in accordance with ASTM A403, ASME SA403/SA403M
    • Wall Thicknesses are in accordance with ANSI B16.9, B16.28, and MSS SP-43
    • Raw material is in accordance with A312
