Suspend horizontal pipe from above. The split ring hanger clamps around the pipe and hangs from a threaded rod — a standard method for supporting horizontal pipe runs from the structure above. Type-304 stainless steel for corrosion resistance.
- Split ring installs around the pipe and bolts closed
- Hangs from threaded hanger rod (3/8" typical)
- Supports horizontal pipe runs suspended from structure above
- Type-304 stainless steel for wet, washdown, and chemical environments
- Manufactured to MSS SP-58 pipe support standards
✔ Used by contractors and professionals
✔ Designed for reliable jobsite performance
Overview
Split ring hangers are one of the most common ways to suspend horizontal pipe from structure above. The ring opens to install around the pipe, bolts closed, and connects to a threaded hanger rod. Type-304 stainless steel resists corrosion in wet, washdown, and many chemical-service environments.
Common Uses
- Suspending horizontal pipe runs from decks and structural steel
- Food, pharmaceutical, and process facility piping
- Wet and washdown areas
- Institutional and industrial building systems
Key Features
- Split ring — bolts together around the pipe
- Type-304 stainless steel — corrosion resistant
- Threaded rod connection (3/8" typical)
- Height adjustable via rod length
- Manufactured to MSS SP-58 pipe support standards
Specifications

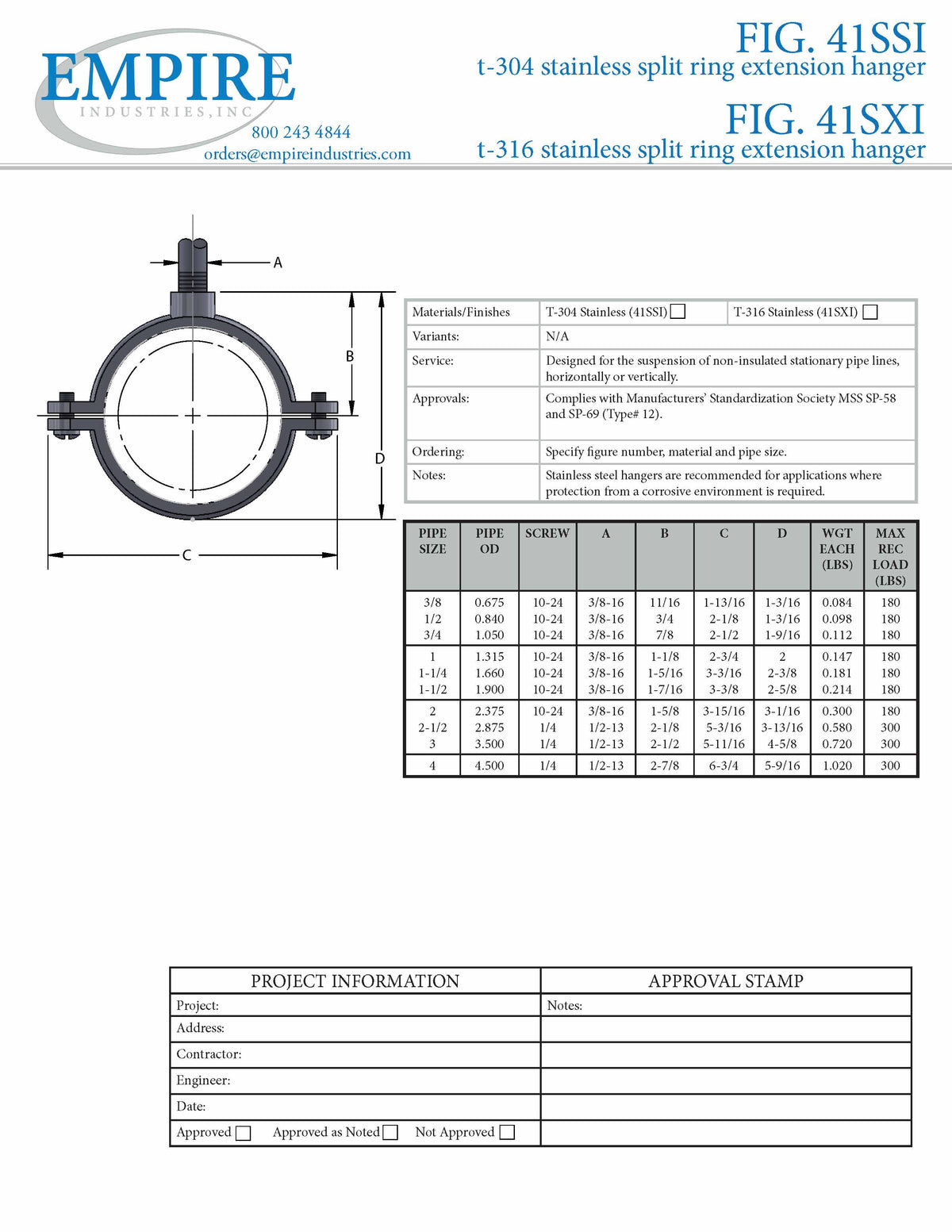

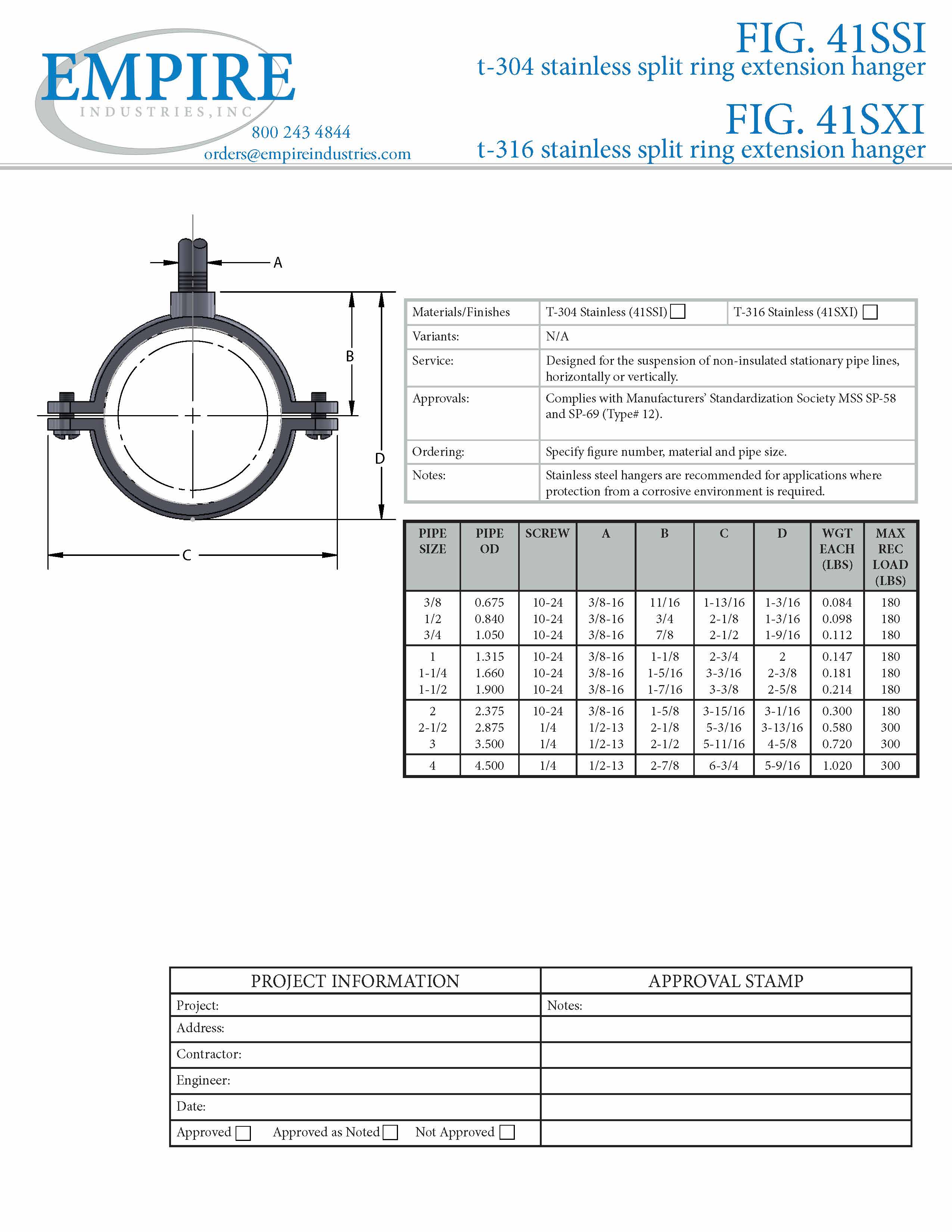

| Type | Split Ring Hanger (Empire Fig. 41) |
| Material | T-304 Stainless Steel |
| Rod Connection | Threaded Rod (3/8" typ.) |
| Pipe Sizing | IPS |
| Standard | MSS SP-58 / SP-69 Type 12 |
Load Ratings by Pipe Size
Maximum recommended load by pipe size, per Empire Fig. 41 engineering data. Match to your pipe's nominal size and apply your project's factor of safety.
| Pipe Size | Max. Rec. Load (lb) |
| 3/8–2" | 180 |
| 2-1/2–4" | 300 |
Listings & Standards
- MSS SP-58 / SP-69 Type 12
- Not UL/FM listed (MSS-compliant split ring hanger)
Competitor Cross-Reference
| PVF Pro (Empire Fig. 41) | Cooper B-Line |
| Split Ring Hanger | B3198R |
Cross-reference is for identification only. Cooper B-Line® is a trademark of its owner, which is not affiliated with or endorsing Empire Industries or PVF Pro. Always confirm fit and load rating for your application.
Frequently Asked Questions
When should I use 304 stainless?
Type-304 stainless resists corrosion in wet, washdown, and many chemical environments — common in food, pharma, and process facilities.
Is it UL/FM listed?
No — split ring hangers are MSS SP-58 Type 12 compliant but are not UL/FM listed.
