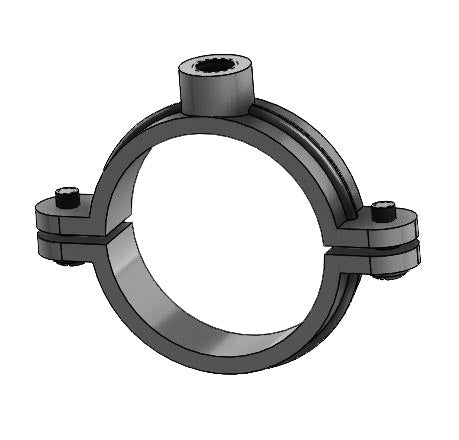

Split Ring Electro-Galvanized Import
- ✔ In Stock — Ships Same Day or Next Business Day
- ✔ Trusted by contractors and industrial buyers
- ✔ Bulk pricing available — Request a Quote
Contact us for contractor pricing or large quantity discounts →
Couldn't load pickup availability
Suspend horizontal pipe from above. The split ring hanger clamps around the pipe and hangs from a threaded rod — a standard, economical method for supporting horizontal pipe runs from the structure above. Electro-galvanized finish.
- Split ring installs around the pipe and bolts closed
- Hangs from threaded hanger rod (3/8" typical)
- Supports horizontal pipe runs suspended from structure above
- Electro-galvanized (zinc) coating for general corrosion resistance
- Manufactured to MSS SP-58 pipe support standards
✔ Used by contractors and professionals
✔ Designed for reliable jobsite performance
Overview
Split ring hangers are one of the most common ways to suspend horizontal pipe from structure above. The ring opens to install around the pipe, bolts closed, and connects to a threaded hanger rod. They install quickly and are height-adjustable via the rod length. Electro-galvanized for general indoor corrosion resistance.
Common Uses
- Suspending horizontal pipe runs from decks and structural steel
- Commercial plumbing, HVAC, and mechanical piping
- Water, vent, and general service pipe
- Institutional and industrial building systems
Key Features
- Split ring — bolts together around the pipe
- Threaded rod connection (3/8" typical)
- Height adjustable via rod length
- Electro-galvanized for general corrosion resistance
- Manufactured to MSS SP-58 pipe support standards
Specifications
| Type | Split Ring Hanger (Empire Fig. 41) |
| Finish | Electro-Galvanized |
| Rod Connection | Threaded Rod (3/8" typ.) |
| Pipe Sizing | IPS |
| Standard | MSS SP-58 / SP-69 Type 12 |
Load Ratings by Pipe Size
Maximum recommended load by pipe size, per Empire Fig. 41 engineering data. Match to your pipe's nominal size and apply your project's factor of safety.
| Pipe Size | Max. Rec. Load (lb) |
| 3/8–2" | 180 |
| 2-1/2–4" | 300 |
Listings & Standards
- MSS SP-58 / SP-69 Type 12
- Not UL/FM listed (MSS-compliant split ring hanger)
Competitor Cross-Reference
| PVF Pro (Empire Fig. 41) | Cooper B-Line |
| Split Ring Hanger | B3198R |
Cross-reference is for identification only. Cooper B-Line® is a trademark of its owner, which is not affiliated with or endorsing Empire Industries or PVF Pro. Always confirm fit and load rating for your application.
Frequently Asked Questions
What is a split ring hanger used for?
It suspends horizontal pipe from a threaded rod anchored to the structure above — one of the most common pipe support methods in commercial construction.
Is it UL/FM listed?
No — split ring hangers are MSS SP-58 Type 12 compliant but are not UL/FM listed. For fire-sprinkler work needing a listed hanger, use a UL/FM swivel-ring hanger.
