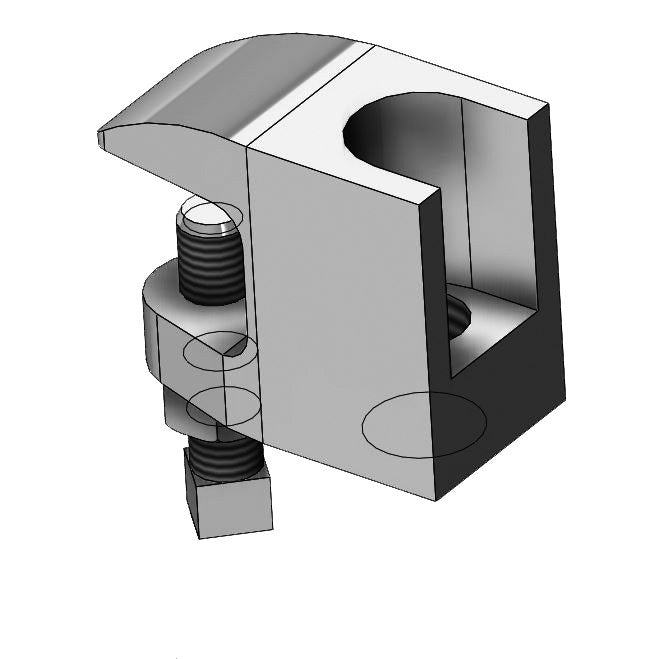

Hang a rod from a structural beam flange. The small-mouth beam clamp grips the edge of a beam or bar-joist flange and provides a threaded connection point for a hanger rod — no drilling or welding. Type-304 stainless steel.
- Clamps onto a beam or bar-joist flange edge
- Provides a threaded rod connection point
- No drilling, welding, or anchors required
- Type-304 stainless steel for corrosive and washdown environments
- Manufactured to MSS SP-58 pipe support standards
✔ Used by contractors and professionals
✔ Designed for reliable jobsite performance
Overview
A small-mouth beam clamp attaches a hanger rod to the edge of a structural steel flange. It is the fast, fastener-free way to pick up pipe loads from beams and bar joists. Type-304 stainless steel resists corrosion in wet, washdown, and many chemical-service environments.
Common Uses
- Hanging pipe rod from beam and bar-joist flanges
- Fire sprinkler, plumbing, and mechanical pipe support
- Food, pharmaceutical, and process facilities
- Wet and washdown areas needing stainless hardware
Key Features
- Small-mouth flange grip
- Threaded rod connection
- No drilling or welding
- Type-304 stainless steel
- MSS SP-58 / SP-69
Specifications
| Type | Small-Mouth Beam Clamp (Empire Fig. 62) |
| Material | T-304 Stainless Steel |
| Connection | Threaded Rod (3/8" & 1/2") |
| Standard | MSS SP-58 / SP-69 |
Load Ratings by Rod Size
Maximum recommended load by rod size, per Empire Fig. 61/62 engineering data. Apply your project's factor of safety.
| Rod Size | Max. Rec. Load (lb) |
| 3/8" | 610 |
| 1/2" | 1,130 |
Listings & Standards
- MSS SP-58 / SP-69
- UL & ULC Listed (3/8" & 1/2")
- FM Approved (3/8")
Competitor Cross-Reference
| PVF Pro (Empire Fig. 62) | Anvil | Cooper B-Line |
| Small-Mouth Beam Clamp | 92 | B3034 |
Cross-reference is for identification only. Anvil® and Cooper B-Line® are trademarks of their respective owners, which are not affiliated with or endorsing Empire Industries or PVF Pro. Always confirm fit and load rating for your application.
Frequently Asked Questions
What is a small-mouth beam clamp for?
It grips a thinner beam or bar-joist flange to provide a rod connection point — hanging pipe without drilling or welding the steel.
Small mouth vs. wide mouth?
Small mouth suits thinner flanges; wide mouth handles thicker flanges. Match the clamp opening to your steel.
