Suspend horizontal pipe — hinged for fast installation. The hinge split ring swings open on a hinge to wrap around the pipe and bolts closed on the opposite side, then hangs from a threaded rod. The hinged design speeds installation over a standard two-bolt split ring. Plain uncoated finish.
- Hinged ring swings open, wraps the pipe, and bolts closed
- Hangs from threaded hanger rod (3/8" typical)
- Hinge speeds installation vs. a standard split ring
- Plain/black uncoated steel
- Manufactured to MSS SP-58 pipe support standards
✔ Used by contractors and professionals
✔ Designed for reliable jobsite performance
Overview
The hinge split ring is a fast-install variant of the classic split ring hanger. The ring is hinged on one side — it swings open, wraps around the pipe, and bolts closed on the other side, then hangs from a threaded rod anchored to the structure above. Plain finish for dry indoor mechanical service.
Common Uses
- Suspending horizontal pipe runs from decks and structural steel
- Commercial plumbing, HVAC, and mechanical piping
- Fast-paced installs where hinged hangers save labor
- Institutional and industrial building systems
Key Features
- Hinged split ring — swings open for installation
- Bolts closed on the opposite side
- Threaded rod connection (3/8" typical)
- Plain uncoated steel
- Manufactured to MSS SP-58 pipe support standards
Specifications

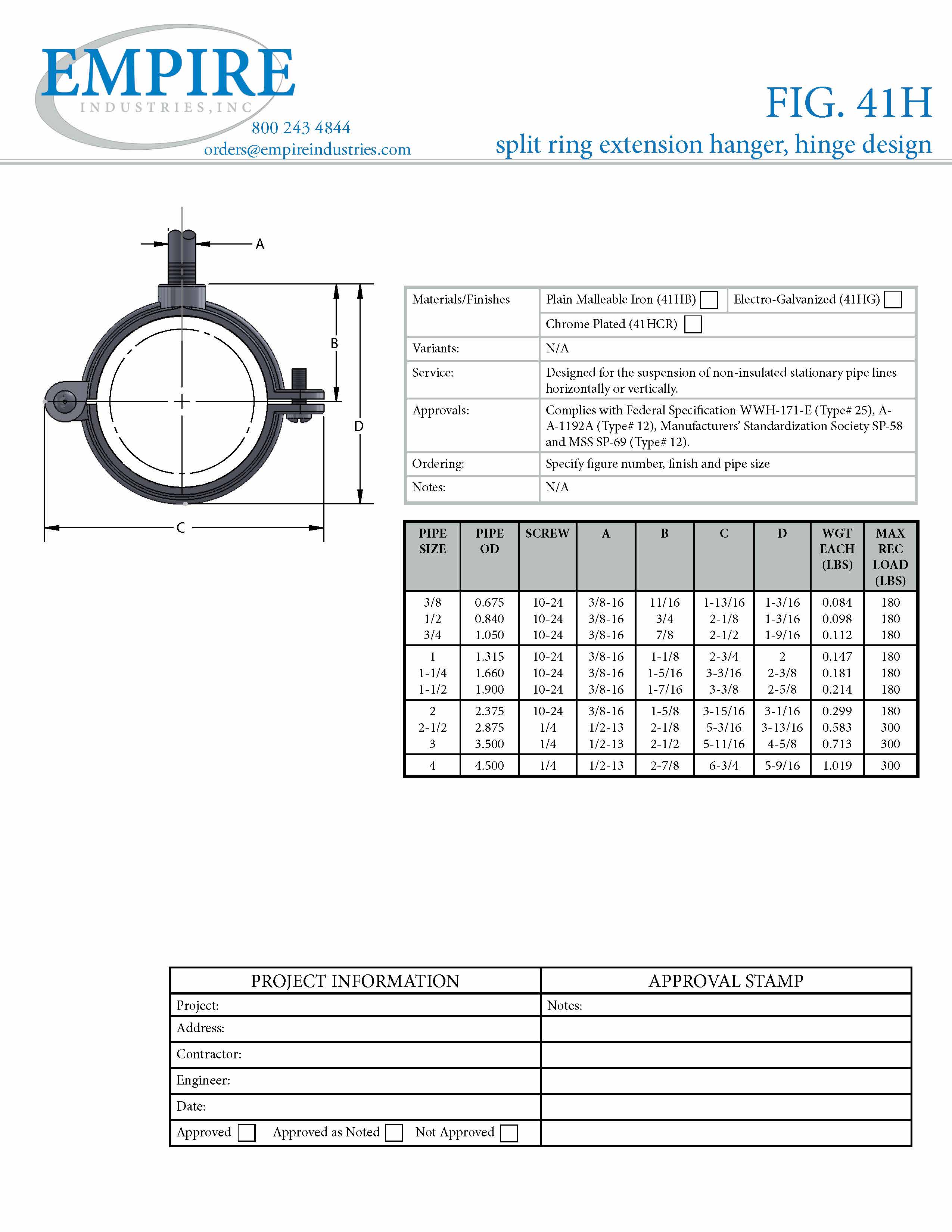

| Type | Hinge Split Ring Hanger (Empire Fig. 41H) |
| Finish | Plain (Uncoated) |
| Rod Connection | Threaded Rod (3/8" typ.) |
| Pipe Sizing | IPS |
| Standard | MSS SP-58 / SP-69 Type 12 |
Load Ratings by Pipe Size
Maximum recommended load by pipe size, per Empire Fig. 41H engineering data. Match to your pipe's nominal size and apply your project's factor of safety.
| Pipe Size | Max. Rec. Load (lb) |
| 3/8–2" | 180 |
| 2-1/2–4" | 300 |
Listings & Standards
- MSS SP-58 / SP-69 Type 12
- Not UL/FM listed (MSS-compliant split ring hanger)
Competitor Cross-Reference
| PVF Pro (Empire Fig. 41H) | Cooper B-Line |
| Hinge Split Ring Hanger | B3198H |
Cross-reference is for identification only. Cooper B-Line® is a trademark of its owner, which is not affiliated with or endorsing Empire Industries or PVF Pro. Always confirm fit and load rating for your application.
Frequently Asked Questions
What is a hinge split ring?
It is a split ring with a hinged side that swings open, so you can wrap it around the pipe and bolt it closed quickly — saving labor over a standard two-bolt split ring.
Is it UL/FM listed?
No — split ring hangers are MSS SP-58 Type 12 compliant but are not UL/FM listed.
