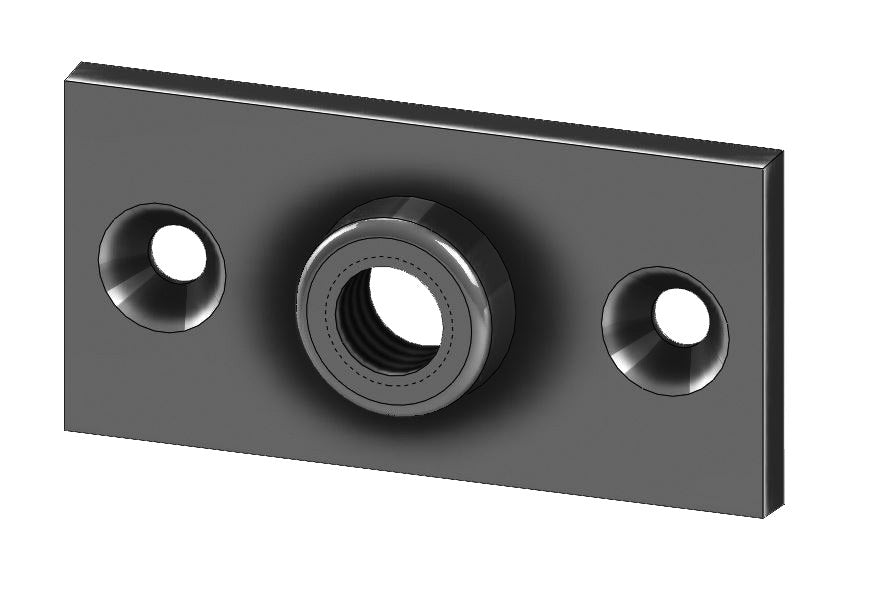

Hanger Flange Plate T-316 Stainless Steel Import

The structural attachment point for rod-hung pipe. The hanger flange plate bolts to a ceiling, beam, or wall and provides a threaded connection for a hanger rod — anchoring rod-suspended pipe to the structure above. Type-316 stainless steel.

• Bolts to structure as the upper attachment for a hanger rod
• Threaded connection accepts standard hanger rod
• Type-316 stainless steel for chloride, marine, and chemical environments
• Pairs with clevis, split ring, swivel ring, and band hangers
• Manufactured to MSS SP-58 pipe support standards

Overview

The hanger flange plate is the upper attachment that ties a hanger rod to the building. It fastens to a concrete deck, beam, or wall through its mounting holes and provides a threaded connection for the rod, which then carries a clevis, split ring, or other hanger below. Type-316 stainless steel adds molybdenum for superior resistance to chlorides and aggressive chemical environments.

Common Uses

• Anchoring hanger rod to ceilings, decks, beams, and walls
• Upper attachment for rod-suspended pipe hangers
• Coastal, marine, and chloride-exposed environments
• Chemical process and wastewater facilities

Key Features

• Mounting holes for fastening to structure
• Threaded connection for hanger rod
• Type-316 stainless steel — maximum corrosion resistance
• Manufactured to MSS SP-58 pipe support standards

Specifications

Frequently Asked Questions

What is a hanger flange plate used for?

It anchors a hanger rod to the building structure, serving as the upper attachment point for rod-suspended pipe hangers.

316 vs 304 stainless — which do I need?

Type-316 adds molybdenum for better resistance to chlorides and harsh chemicals — preferred in coastal, marine, and aggressive process environments.
