3000# Forged Steel 90° Elbow

High Demand Item – Frequently Reordered by Contractors and Industrial Buyers

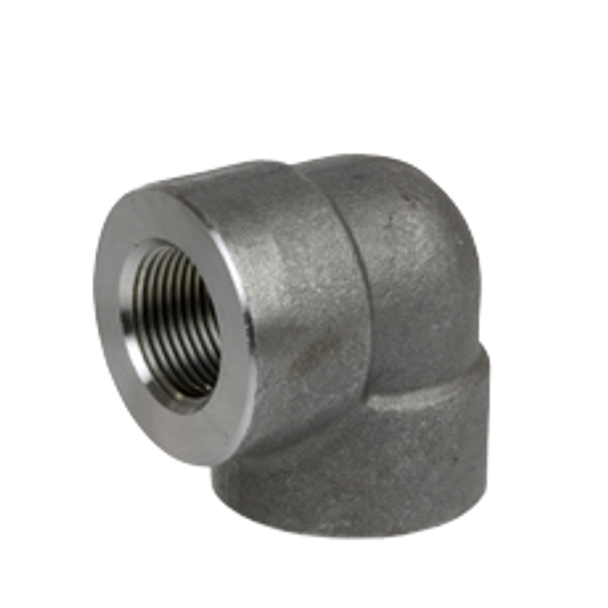

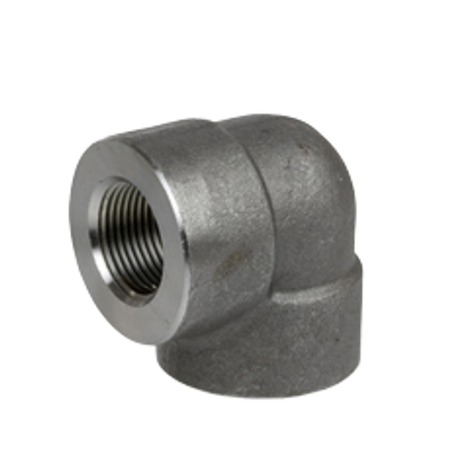

SMP 3000# Forged Steel 90° Threaded Elbows are manufactured from ASTM A105N normalized carbon steel and provide a 90° directional change in threaded piping systems. Dimensions conform to ASME B16.11. NPT threads conform to ASME B1.20.1.

Available in 3000# class with NPT threaded ends. Select size from the dropdown.

Applications

• High-pressure threaded piping systems
• Steam, air, water, and hydraulic lines
• Industrial mechanical and process piping
• Oil and gas distribution
• Commercial HVAC and utility systems

Key Features

• Material: ASTM A105N normalized carbon steel
• Dimensions: ASME B16.11
• NPT threads: ASME B1.20.1
• Class: 3000#
• Multiple sizes available — 1/8" through 4"

Frequently Asked Questions

What standard does this fitting meet?

Dimensions: ASME B16.11. NPT threads: ASME B1.20.1. Material: ASTM A105N.

What is the pressure class?

3000# — consult system design for specific P-T ratings.

What sizes are available?

Select from the dropdown above.

Why Contractors Choose This Product

• SMP forged steel fittings conform to ASME B16.11 and ASTM A105N
• 3000# class rated for high-pressure industrial applications
• NPT threads per ASME B1.20.1 — standard compatibility
• Multiple sizes in stock — one source for the full range
• Import Non China — sourced from qualified manufacturers
