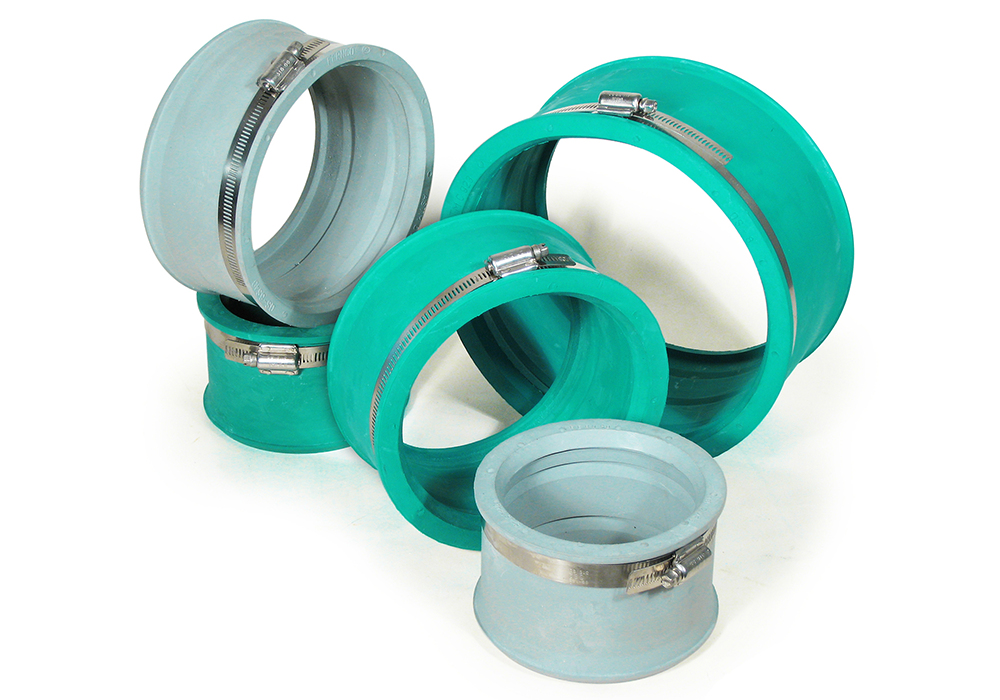

Fernco QwikSeal Lateral Connector – Tap Service Pipe Into a Cored Main
- ✔ In Stock — Ships Same Day or Next Business Day
- ✔ Trusted by contractors and industrial buyers
- ✔ Bulk pricing available — Request a Quote
Contact us for contractor pricing or large quantity discounts →
Couldn't load pickup availability
✓ Taps a service line into a cored hole in any main, manhole or large pipe
✓ Connects to concrete, clay, solid-wall plastic & corrugated — if you can core it, it connects
✓ Watertight compression seal to 10 PSI — handles up to 7° of deflection in manholes
✓ 316 stainless steel clamp — conforms to ASTM C923
High Demand Item – Frequently Reordered by Contractors
The Fernco QwikSeal is the fast way to tie a service lateral into a sewer or storm main without excavating the whole line. Core a hole in the host pipe or manhole, insert the QwikSeal, push your service pipe through, and tighten the 316 stainless clamp — a watertight connection in minutes, with no glues, epoxies, grout, or hard-to-use hubs.
It seals into concrete, clay, solid-wall plastic, and corrugated host pipe, and handles up to 7° of deflection in concrete manholes. Easy-to-identify colors keep sizing straightforward: green for SDR sewer pipe, grey for PVC Schedule 40 / iron pipe size. Made in the USA and compliant with ASTM C923.
Applications
- Tapping service laterals into sanitary and storm mains
- Manhole and structure connections (up to 7° deflection)
- Tie-ins to new, existing, and rehabilitated lines with minimal excavation
- Connecting to concrete, clay, solid-wall plastic, and corrugated host pipe
Key Features
- Watertight compression seal up to 10 PSI
- 316 stainless steel clamp, conforms to ASTM C923
- Color-coded: green for SDR, grey for Sch 40 / IPS
- Handles up to 7° of deflection in concrete manholes
- No glues, epoxies, grout, or hubs — core, insert, tighten
- Made in the USA
Specifications
| Gasket Material | Conforms to ASTM C923 |
| Clamp | 316 stainless steel |
| Installation Torque | 60 in-lb (free torque 6 in-lb max; ultimate torque 150 in-lb min) |
| Seal Rating | Watertight to 10 PSI; up to 7° deflection in concrete manholes |
| Field Test | Test to 5.0 PSI prior to concealing |
| Origin | Made in USA |
QwikSeal Lineup
| Part No. | Service Pipe | Color | Host Pipe Application | Price |
|---|---|---|---|---|
| QS-4 | 4" SDR-35 | Green | 8" + concrete/clay/solid-wall plastic; 8"-24" corrugated | $114.38 |
| QS-4S40 | 4" SCH-40 / IPS | Grey | 8" + concrete/clay/solid-wall plastic; 8"-24" corrugated | $114.38 |
| QS-6 | 6" SDR-35 | Green | 10" + concrete/clay/solid-wall plastic; 10"-24" corrugated | $132.67 |
| QS-6S40 | 6" SCH-40 / IPS | Grey | 10" + concrete/clay/solid-wall plastic; 10"-24" corrugated | $132.67 |
How It Installs
- Core the connection hole in the host pipe or manhole
- Insert the QwikSeal into the cored hole
- Insert the lateral service pipe through the seal
- Tighten the stainless clamp to 60 in-lb to secure
Best Used For
- Sewer and storm lateral tap-ins without full excavation
- Service connections to manholes and large-diameter mains
- Rehabilitated and existing line tie-ins
- Municipal and contractor sewer work
FAQ
What host pipe can it connect to?
Concrete, clay, solid-wall plastic, and corrugated — if you can core a clean hole in it, QwikSeal can seal to it.
What’s the difference between green and grey?
Green QwikSeals fit SDR-35 / SDR-26 sewer pipe; grey QwikSeals (S40) fit PVC Schedule 40 or iron pipe size. Match the color to your service pipe.
Do I need a special hole saw?
Fernco offers matching coring bits — tempered steel hole saws for plastic and diamond-tipped abrasive bits for concrete and clay. Ask us if you need the coring tools.
Why Contractors Choose This
- Taps a main in minutes — no full-line excavation
- One connector seals to virtually any host pipe material
- Color-coded so the crew grabs the right one
- Watertight to 10 PSI and rated for manhole deflection
- Made in the USA
✓ Conforms to ASTM C923
✓ 316 stainless steel clamp
✓ Watertight to 10 PSI, up to 7° manhole deflection
✓ Made in the USA
Documents
QwikSeal Specs, Data Sheet & Installation
