Em-Lok Adjustable Swivel Ring (3/8" Rod) T-304 Stainless Steel OD
- ✔ In Stock — Ships Same Day or Next Business Day
- ✔ Trusted by contractors and industrial buyers
- ✔ Bulk pricing available — Request a Quote
Contact us for contractor pricing or large quantity discounts →
Couldn't load pickup availability

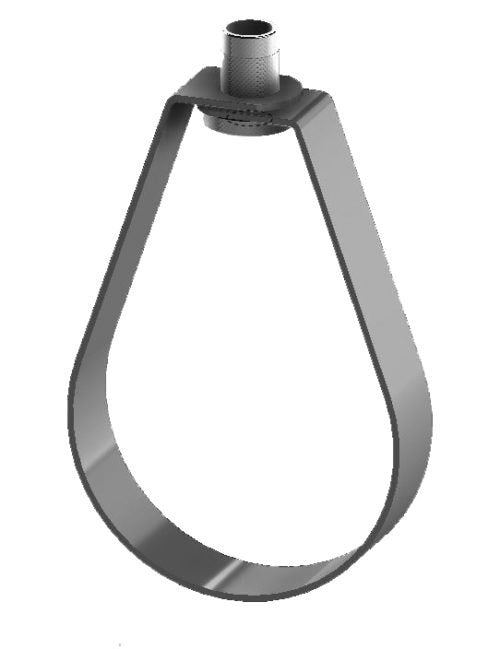

Adjustable swivel-ring hanger for horizontal tube. The EM-LOK swivel ring bolts around the tube and threads onto a hanger rod through a swivel nut that lets the ring align to the run. Type-304 stainless steel, sized to tube OD, for 3/8" rod.
- Ring bolts around the tube
- Swivel nut threads onto the hanger rod and aligns to the run
- Sized to tube outside diameter (OD)
- Type-304 stainless steel for wet, washdown, and chemical environments
- Manufactured to MSS SP-58 pipe support standards
✔ Used by contractors and professionals
✔ Designed for reliable jobsite performance
Overview
The swivel-ring hanger is one of the most widely used hangers for horizontal pipe and tube. EM-LOK is Empire's adjustable swivel-ring design, with a swivel nut that threads onto the hanger rod and lets the ring align to the run. This version is sized to tube outside diameter. Type-304 stainless steel resists corrosion in wet, washdown, and many chemical-service environments.
Common Uses
- Suspending horizontal OD-sized tube from a rod
- Food, pharmaceutical, and process facility tube
- Wet and washdown areas
- Commercial and institutional mechanical systems
Key Features
- Adjustable swivel-ring design
- Sized to tube OD
- Sized for 3/8" threaded rod
- Type-304 stainless steel — corrosion resistant
- MSS SP-58 / SP-69 Type 10
Specifications
| Type | Adjustable Swivel Ring Hanger (Empire Fig. 310) |
| Material | T-304 Stainless Steel |
| Rod | 3/8" |
| Pipe Sizing | Tube OD |
| Standard | MSS SP-58 / SP-69 Type 10 |
Listings & Standards
- MSS SP-58 / SP-69 Type 10
- UL & FM listings apply to the galvanized variants of this hanger
Competitor Cross-Reference
| PVF Pro (Empire Fig. 310) | Anvil | Cooper B-Line |
| Adjustable Swivel Ring Hanger | 69 | B3170 |
Cross-reference is for identification only. Anvil® and Cooper B-Line® are trademarks of their respective owners, which are not affiliated with or endorsing Empire Industries or PVF Pro. Always confirm fit and load rating for your application.
Frequently Asked Questions
What does "tube OD" sizing mean?
This ring is sized to the actual outside diameter of the tube rather than nominal IPS pipe size — match it to your tube's measured OD.
What rod does it use?
This hanger is sized for 3/8" threaded rod.
