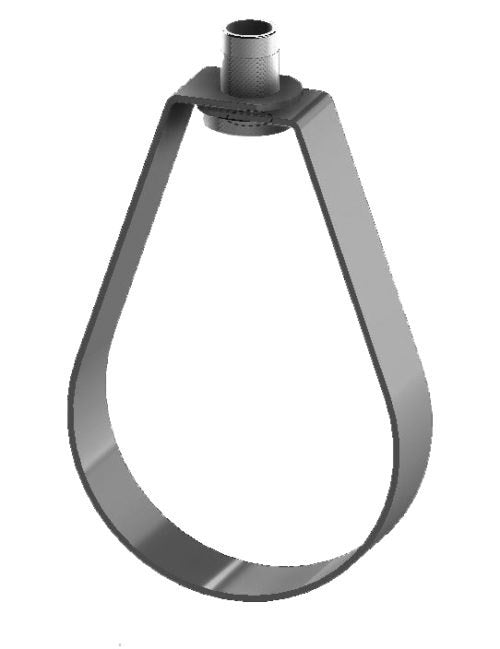

Em-Lok Adjustable Swivel Ring (3/8" Rod) T-304 Stainless Steel IPS
- ✔ In Stock — Ships Same Day or Next Business Day
- ✔ Trusted by contractors and industrial buyers
- ✔ Bulk pricing available — Request a Quote
Contact us for contractor pricing or large quantity discounts →
Couldn't load pickup availability
Adjustable swivel-ring hanger for horizontal pipe. The EM-LOK swivel ring bolts around the pipe and threads onto a hanger rod through a swivel nut that lets the ring align to the run — a fast, widely used way to hang horizontal pipe. Type-304 stainless steel, sized for 3/8" rod, IPS.
- Ring bolts around the pipe
- Swivel nut threads onto the hanger rod and aligns to the run
- Sized for 3/8" threaded rod
- Type-304 stainless steel for wet, washdown, and chemical environments
- Manufactured to MSS SP-58 pipe support standards
✔ Used by contractors and professionals
✔ Designed for reliable jobsite performance
Overview
The swivel-ring hanger is one of the most widely used hangers for horizontal pipe. EM-LOK is Empire's adjustable swivel-ring design: the ring closes around the pipe and a swivel nut threads onto the hanger rod, letting the ring align to the pipe's pitch. Type-304 stainless steel resists corrosion in wet, washdown, and many chemical-service environments.
Common Uses
- Suspending horizontal pipe runs from a rod
- Food, pharmaceutical, and process facility piping
- Wet and washdown areas
- Commercial plumbing, HVAC, and mechanical systems
Key Features
- Adjustable swivel-ring design
- Sized for 3/8" threaded rod
- Type-304 stainless steel — corrosion resistant
- MSS SP-58 / SP-69 Type 10
Specifications
| Type | Adjustable Swivel Ring Hanger (Empire Fig. 310) |
| Material | T-304 Stainless Steel |
| Rod | 3/8" |
| Pipe Sizing | IPS |
| Standard | MSS SP-58 / SP-69 Type 10 |
Load Ratings by Pipe Size
Maximum recommended load by pipe size, per Empire Fig. 310 engineering data. Match to your pipe's nominal size and apply your project's factor of safety.
| Pipe Size | Max. Rec. Load (lb) |
| 1/2–3/4" | 400 |
| 1–3-1/2" | 600 |
| 4–5" | 1,000 |
| 6–8" | 1,250 |
Listings & Standards
- MSS SP-58 / SP-69 Type 10
- UL & FM listings apply to the galvanized variants of this hanger
Competitor Cross-Reference
| PVF Pro (Empire Fig. 310) | Anvil | Cooper B-Line |
| Adjustable Swivel Ring Hanger | 69 | B3170 |
Cross-reference is for identification only. Anvil® and Cooper B-Line® are trademarks of their respective owners, which are not affiliated with or endorsing Empire Industries or PVF Pro. Always confirm fit and load rating for your application.
Frequently Asked Questions
What is a swivel ring hanger?
It is a ring that bolts around the pipe and threads onto a hanger rod through a swivel nut, letting the ring align to the run. It is one of the most common horizontal pipe hangers.
What rod does it use?
This hanger is sized for 3/8" threaded rod.
