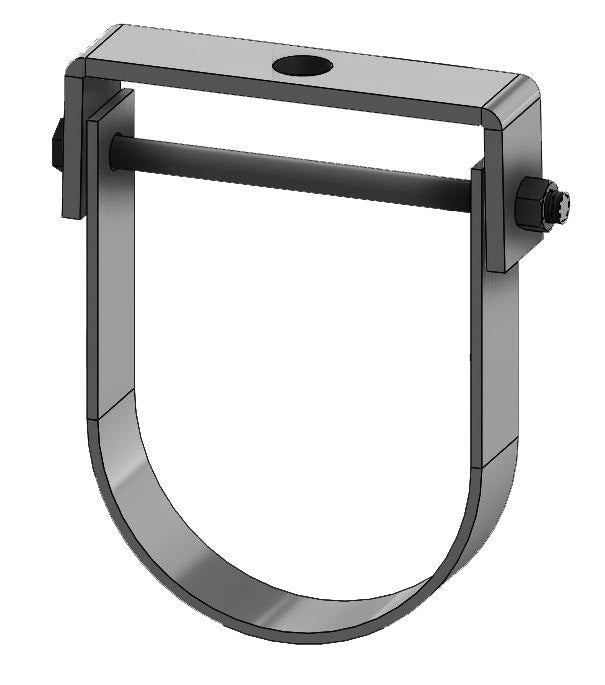

Clevis V-Bottom Plain Finish Size 1 (1/2" - 2" IPS)
- ✔ In Stock — Ships Same Day or Next Business Day
- ✔ Trusted by contractors and industrial buyers
- ✔ Bulk pricing available — Request a Quote
Contact us for contractor pricing or large quantity discounts →
Couldn't load pickup availability
V-bottom adjustable clevis hanger. A clevis hanger with a vee-shaped bottom strap that cradles the pipe for improved seating, suspending horizontal pipe from a hanger rod with field-adjustable elevation. Plain (uncoated) finish. Size 1 (1/2"–2" IPS).
- Vee-shaped bottom strap cradles the pipe
- Suspends horizontal pipe from a hanger rod
- Vertical adjustment after installation
- Plain/black uncoated steel — ideal where pipe will be painted or coated
- Size 1 covers 1/2–2" IPS
✔ Used by contractors and professionals
✔ Designed for reliable jobsite performance
Overview
The V-bottom clevis hanger uses a vee-shaped lower strap that cradles the pipe, giving consistent seating across the size range. It suspends horizontal pipe from a threaded rod with field-adjustable elevation. Plain uncoated steel is ideal for indoor runs or where the assembly will be field-painted. Manufactured to MSS SP-58.
Common Uses
- Horizontal pipe support across a range of small-to-mid sizes
- Indoor mechanical and plumbing systems
- Runs that will be field-painted
- Anywhere field height adjustment is needed
Key Features
- Vee-shaped bottom strap
- Adjustable elevation after installation
- Plain uncoated steel
- Size 1 — 1/2–2" IPS range
Specifications
| Type | Adjustable Clevis Hanger (V-Bottom) |
| Finish | Plain (Uncoated) |
| Size Range | Size 1 — 1/2–2" IPS |
| Standard | MSS SP-58 |
Frequently Asked Questions
What is a V-bottom clevis?
Its lower strap is vee-shaped to cradle the pipe, giving consistent seating across the size range.
What does Size 1 cover?
Size 1 spans 1/2" through 2" IPS pipe.
