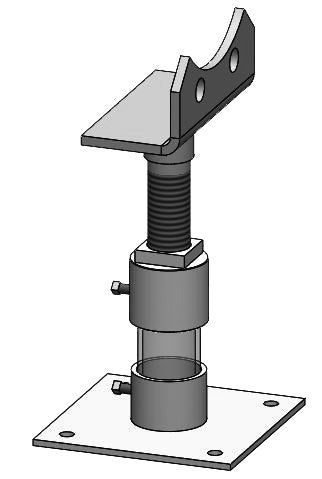

Bolt-On Flange Saddle Support Kit Hot Dip Galvanized Class 125/150 Flange

Support pipe off a flanged connection. The bolt-on flange saddle support kit mounts to a Class 125/150 flange bolt pattern and carries the pipe on an adjustable saddle — supporting pipe at or near a flanged joint, valve, or piece of equipment. Base, riser, and saddle supplied together. Fits DIP and IPS pipe. Hot-dip galvanized finish.

• Bolts to a Class 125/150 flange bolt pattern
• Adjustable saddle carries the pipe
• Supports pipe at flanged joints, valves, and equipment
• Hot-dip galvanized for outdoor and corrosive service
• Fits DIP and IPS pipe sizing

Overview

The bolt-on flange saddle support attaches to a Class 125/150 flange bolt pattern rather than a floor base, carrying the pipe on an adjustable saddle. It is used to support pipe at or near flanged joints, valves, pumps, and equipment connections where a flange provides the mounting point. Hot-dip galvanized construction suits outdoor and corrosive environments.

Common Uses

• Supporting pipe at flanged joints and valves
• Pump and equipment connection piping
• Process and utility piping with flanged connections
• Outdoor and wet-environment pipe runs

Key Features

• Bolts to Class 125/150 flange pattern
• Adjustable saddle carries the pipe
• Complete kit — flange base, riser, and saddle
• Hot-dip galvanized for corrosion resistance
• Fits DIP and IPS pipe

Specifications

Frequently Asked Questions

How does this mount?

It bolts to a Class 125/150 flange bolt pattern rather than sitting on a floor base — ideal where a flange provides the support point.

Is the height adjustable?

Yes — the riser allows field height adjustment of the saddle.
