Band Hanger T-316 Stainless Steel IPS
- ✔ In Stock — Ships Same Day or Next Business Day
- ✔ Trusted by contractors and industrial buyers
- ✔ Bulk pricing available — Request a Quote
Contact us for contractor pricing or large quantity discounts →
Couldn't load pickup availability

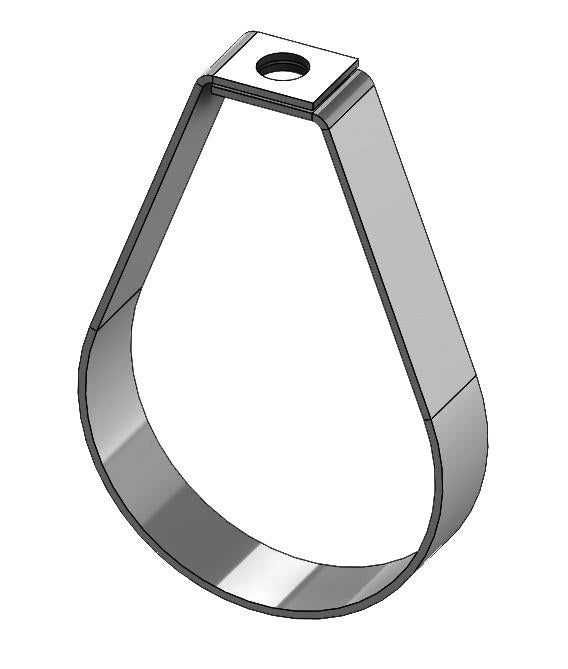

Suspend horizontal pipe from a rod. The band hanger wraps the pipe in an adjustable band and connects to a threaded hanger rod, supporting horizontal pipe from the structure above. Type-316 stainless steel for maximum corrosion resistance, IPS sizing.
- Adjustable band wraps the pipe
- Connects to a threaded hanger rod (3/8" typical)
- Supports horizontal pipe runs from above
- Type-316 stainless steel for chloride, marine, and chemical environments
- Manufactured to MSS SP-58 pipe support standards
✔ Used by contractors and professionals
✔ Designed for reliable jobsite performance
Overview
The band hanger is an adjustable band that wraps the pipe and connects to a threaded rod anchored to the structure above. Type-316 stainless steel adds molybdenum for superior resistance to chlorides and aggressive chemicals.
Common Uses
- Suspending horizontal pipe in coastal and marine buildings
- Chemical process and wastewater facility piping
- Wet and washdown areas
- Institutional and industrial building systems
Key Features
- Adjustable band design
- Threaded rod connection (3/8" typical)
- Type-316 stainless steel — maximum corrosion resistance
- MSS SP-58 / SP-69 Type 7
Specifications
| Type | Adjustable Band Hanger (Empire Fig. 31) |
| Material | T-316 Stainless Steel |
| Rod Connection | Threaded Rod (3/8" typ.) |
| Pipe Sizing | IPS |
| Standard | MSS SP-58 / SP-69 Type 7 |
Load Ratings by Pipe Size
Maximum recommended load by pipe size, per Empire Fig. 31 engineering data. Match to your pipe's nominal size and apply your project's factor of safety.
| Pipe Size | Max. Rec. Load (lb) |
| 3/8–2" | 610 |
| 2-1/2–3-1/2" | 970 |
| 4–5" | 1,130 |
| 6" | 1,600 |
| 8" | 1,800 |
Listings & Standards
- MSS SP-58 / SP-69 Type 7
- Not UL/FM listed (MSS-compliant adjustable band hanger)
Competitor Cross-Reference
| PVF Pro (Empire Fig. 31) | Cooper B-Line |
| Adjustable Band Hanger | B3172 |
Cross-reference is for identification only. Cooper B-Line® is a trademark of its owner, which is not affiliated with or endorsing Empire Industries or PVF Pro. Always confirm fit and load rating for your application.
Frequently Asked Questions
316 vs 304 — which do I need?
Type-316 adds molybdenum for better resistance to chlorides and harsh chemicals — preferred in coastal, marine, and aggressive process environments.
What size do I need?
Match the hanger to your pipe's nominal size (IPS).
