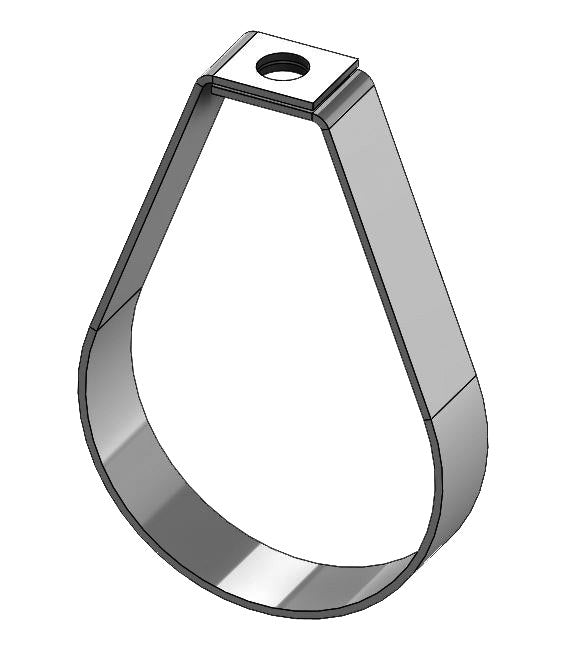

Band Hanger T-304 Stainless Steel IPS
- ✔ In Stock — Ships Same Day or Next Business Day
- ✔ Trusted by contractors and industrial buyers
- ✔ Bulk pricing available — Request a Quote
Contact us for contractor pricing or large quantity discounts →
Couldn't load pickup availability
Suspend horizontal pipe from a rod. The band hanger wraps the pipe in an adjustable band and connects to a threaded hanger rod, supporting horizontal pipe from the structure above. Type-304 stainless steel for corrosion resistance, IPS sizing.
- Adjustable band wraps the pipe
- Connects to a threaded hanger rod (3/8" typical)
- Supports horizontal pipe runs from above
- Type-304 stainless steel for wet, washdown, and chemical environments
- Manufactured to MSS SP-58 pipe support standards
✔ Used by contractors and professionals
✔ Designed for reliable jobsite performance
Overview
The band hanger is an adjustable band that wraps the pipe and connects to a threaded rod anchored to the structure above. Type-304 stainless steel resists corrosion in wet, washdown, and many chemical-service environments.
Common Uses
- Suspending horizontal pipe runs from decks and structural steel
- Food, pharmaceutical, and process facility piping
- Wet and washdown areas
- Institutional and industrial building systems
Key Features
- Adjustable band design
- Threaded rod connection (3/8" typical)
- Type-304 stainless steel — corrosion resistant
- MSS SP-58 / SP-69 Type 7
Specifications
| Type | Adjustable Band Hanger (Empire Fig. 31) |
| Material | T-304 Stainless Steel |
| Rod Connection | Threaded Rod (3/8" typ.) |
| Pipe Sizing | IPS |
| Standard | MSS SP-58 / SP-69 Type 7 |
Load Ratings by Pipe Size
Maximum recommended load by pipe size, per Empire Fig. 31 engineering data. Match to your pipe's nominal size and apply your project's factor of safety.
| Pipe Size | Max. Rec. Load (lb) |
| 3/8–2" | 610 |
| 2-1/2–3-1/2" | 970 |
| 4–5" | 1,130 |
| 6" | 1,600 |
| 8" | 1,800 |
Listings & Standards
- MSS SP-58 / SP-69 Type 7
- Not UL/FM listed (MSS-compliant adjustable band hanger)
Competitor Cross-Reference
| PVF Pro (Empire Fig. 31) | Cooper B-Line |
| Adjustable Band Hanger | B3172 |
Cross-reference is for identification only. Cooper B-Line® is a trademark of its owner, which is not affiliated with or endorsing Empire Industries or PVF Pro. Always confirm fit and load rating for your application.
Frequently Asked Questions
When should I use 304 stainless?
Type-304 stainless resists corrosion in wet, washdown, and many chemical environments — common in food, pharma, and process facilities.
What size do I need?
Match the hanger to your pipe's nominal size (IPS).
