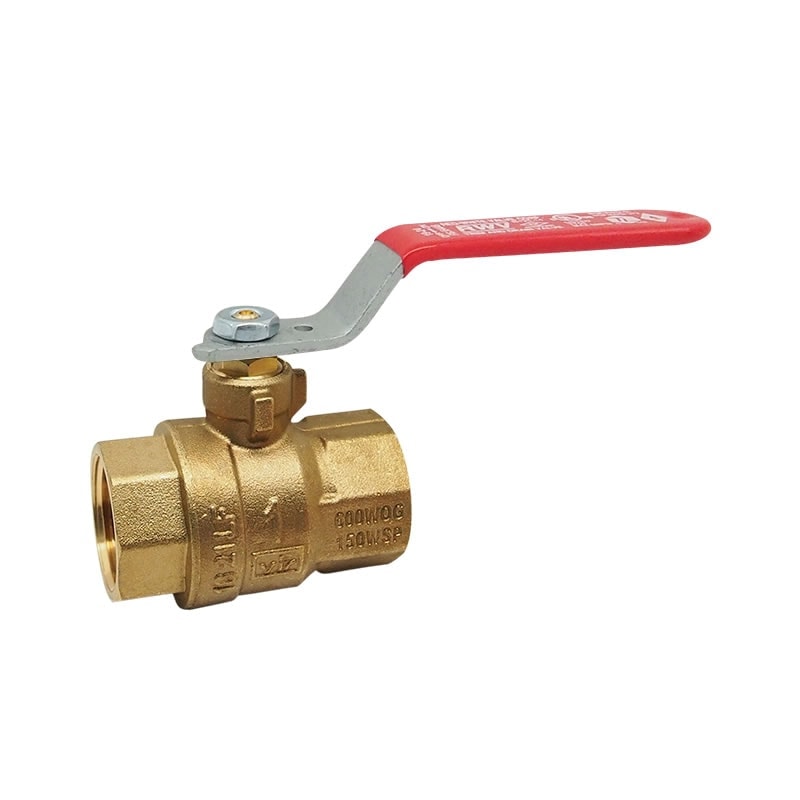

150#WSP/600# WOG Threaded Brass Full Port Ball Valve

Full port flow — no restrictions. Brass body for standard water, air, and gas service.

• Full port design — unrestricted flow, no pressure drop across valve
• Quarter-turn operation with clear open/closed handle indication

Overview

150#WSP/600# WOG Threaded Brass Full Port Ball Valve is a full port ball valve for shutoff and flow control on plumbing, HVAC, and industrial piping systems. Full port bore provides unrestricted flow — preferred for main shutoffs and high-flow applications. Quarter-turn handle provides fast, reliable operation.

Common Uses

• Water supply main shutoffs and branch line isolation
• HVAC heating and cooling system shutoffs
• Compressed air and pneumatic systems
• General commercial and residential plumbing
• Mechanical and industrial piping systems

Key Features

• Full port — bore matches pipe ID for zero flow restriction
• Brass body and ball
• 2-piece compact body
• Blow-out proof stem for pressure safety
• TFE/PTFE seats and packing for long service life

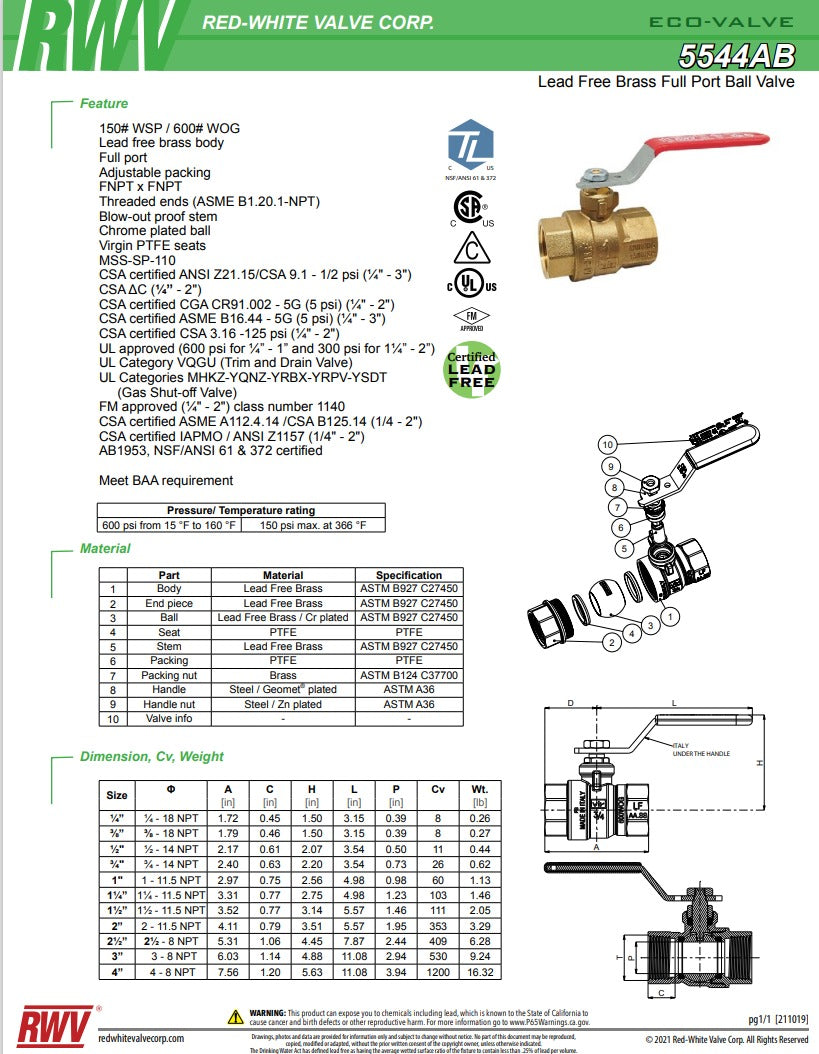

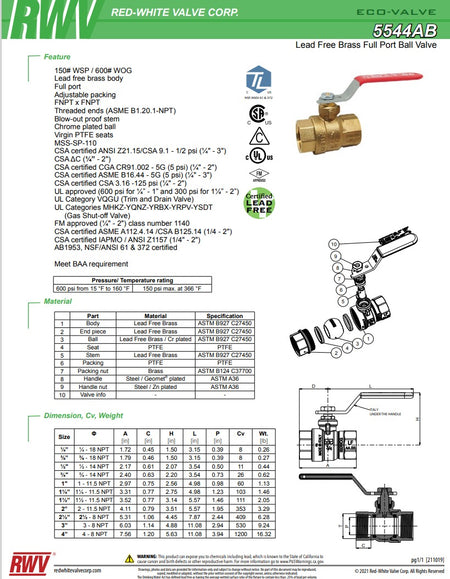

Specifications

Frequently Asked Questions

What is a ball valve used for?

Ball valves provide reliable quarter-turn shutoff and flow control on water, air, gas, and fluid piping systems. The handle gives immediate visual indication of open or closed position.

Full port vs. standard port — which do I need?

Full port has a bore equal to the pipe ID — no flow restriction. Standard port has a slightly smaller bore. Use full port for main shutoffs, high-flow lines, and where pressure drop matters.

Can this valve be used on gas lines?

Standard ball valves are rated for water and air. For gas lines, use a CSA-rated gas ball valve.

What is a 3-piece ball valve?

3-piece valves have a removable body that allows the valve internals to be serviced or replaced without cutting out the valve from the piping system.

Why Contractors Choose This Product

• Quarter-turn operation is faster and more reliable than multi-turn gate valves for isolation
• Full port design eliminates flow restriction on critical water mains and high-flow lines
• Proven brass construction for long service life on standard water, air, and gas systems
• PVFPro sources from trusted manufacturers — consistent quality on every valve
