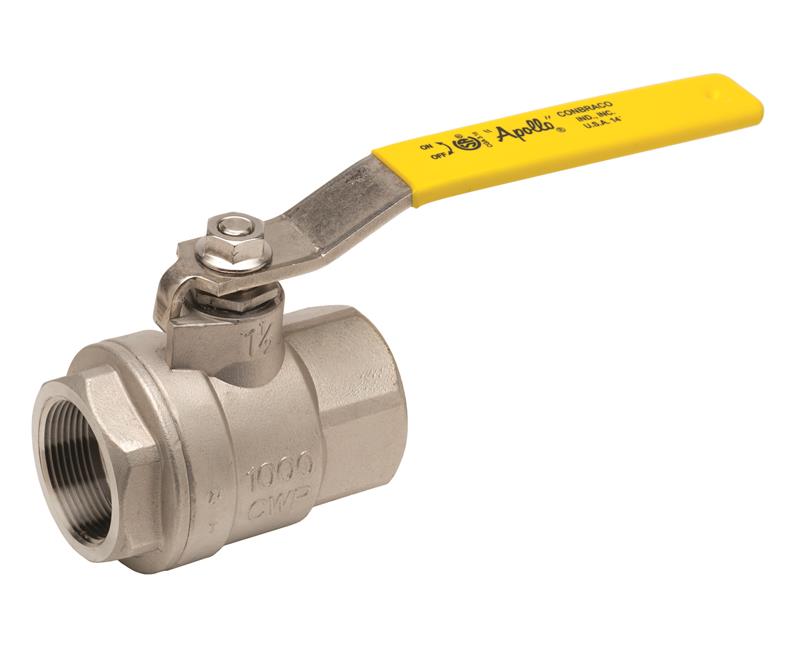

Apollo 76 Series 1000# Threaded Stainless Steel Ball Valve Full Port w/ Locking Handle Made In USA
- ✔ In Stock — Ships Same Day or Next Business Day
- ✔ Trusted by contractors and industrial buyers
- ✔ Bulk pricing available — Request a Quote
Contact us for contractor pricing or large quantity discounts →
Couldn't load pickup availability
Full port flow — no restrictions. Stainless steel for corrosive service. Stainless steel construction for corrosive fluids and high-temperature service.
- Full port design — unrestricted flow, no pressure drop across valve
- 316 stainless steel body and ball — corrosion and chemical resistant
- Locking handle — secures valve in open or closed position
- Quarter-turn operation with clear open/closed handle indication
✔ Used by contractors and professionals
✔ Designed for reliable jobsite performance
Overview
Apollo 76 Series 1000# Threaded Stainless Steel Ball Valve Full Port w/ Locking Handle Made In USA is a full port ball valve for shutoff and flow control on plumbing, HVAC, and industrial piping systems. Full port bore provides unrestricted flow — preferred for main shutoffs and high-flow applications. 316 stainless provides superior corrosion resistance for aggressive fluids and elevated temperatures. Quarter-turn handle provides fast, reliable operation.
Common Uses
- Water supply main shutoffs and branch line isolation
- HVAC heating and cooling system shutoffs
- Compressed air and pneumatic systems
- Chemical and process fluid piping
- Mechanical and industrial piping systems
Key Features
- Full port — bore matches pipe ID for zero flow restriction
- Stainless Steel body and ball
- 2-piece compact body
- Blow-out proof stem for pressure safety
- TFE/PTFE seats and packing for long service life
Specifications
| Material | Stainless Steel |
| Type | Full Port Ball Valve |
| Body Style | 2-Piece |
| End Connections | Threaded (NPT) |
| Operation | Quarter-Turn |
| Lead-Free | Standard |
| Gas Rated | Water/Air/Steam |
Frequently Asked Questions
What is a ball valve used for?
Ball valves provide reliable quarter-turn shutoff and flow control on water, air, gas, and fluid piping systems. The handle gives immediate visual indication of open or closed position.
Full port vs. standard port — which do I need?
Full port has a bore equal to the pipe ID — no flow restriction. Standard port has a slightly smaller bore. Use full port for main shutoffs, high-flow lines, and where pressure drop matters.
Can this valve be used on gas lines?
Standard ball valves are rated for water and air. For gas lines, use a CSA-rated gas ball valve.
What is a 3-piece ball valve?
3-piece valves have a removable body that allows the valve internals to be serviced or replaced without cutting out the valve from the piping system.
Why Contractors Choose This Product
- Quarter-turn operation is faster and more reliable than multi-turn gate valves for isolation
- Full port design eliminates flow restriction on critical water mains and high-flow lines
- 316 SS handles the fluids and temperatures that brass cannot
- PVFPro sources from trusted manufacturers — consistent quality on every valve
Fewer reorders. Lower cost per job. Keeps your crew stocked.
