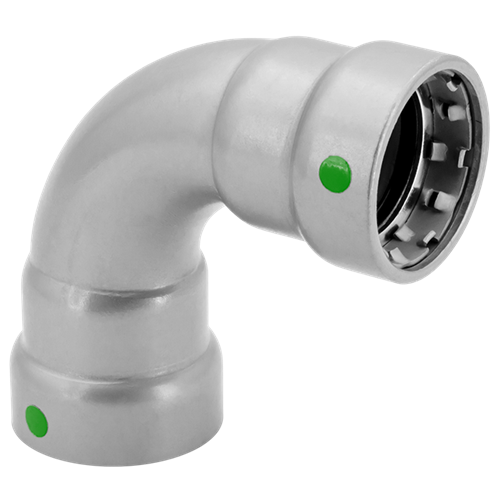

Carbon Steel Press 90° Elbow – LegendPress CSW Press Fitting
- ✔ In Stock — Ships Same Day or Next Business Day
- ✔ Trusted by contractors and industrial buyers
- ✔ Bulk pricing available — Request a Quote
Contact us for contractor pricing or large quantity discounts →
Couldn't load pickup availability
✔ Contractor-Grade Carbon Steel Press Fitting – Built for Hydronic & Fire Systems
✔ Flame-Free Installation – No Welding or Threading Required
✔ FM & UL Certified – Trusted by Pros
High Demand Item – Frequently Reordered by Contractors
The LegendPress CSW Carbon Steel Press 90° Elbow is a contractor-grade carbon steel press fitting designed for 90-degree direction changes in hydronic piping systems, mechanical piping, and commercial plumbing applications. This press elbow fitting installs without welding or threading — flame-free installation reduces labor time and eliminates the need for hot work permits on every job. A reliable press pipe fitting for new construction, retrofit, and repair work on carbon steel systems, compatible with Ridgid, Milwaukee, and DeWalt press tools.
Applications
- Hydronic heating systems
- Hydronic cooling systems
- Mechanical piping systems
- Commercial plumbing systems
- Fire sprinkler systems
- Retrofit and repair installs on existing carbon steel pipe
- Maintenance work in commercial and industrial facilities
- Potable (drinking) water systems
- Steam applications above 5 psi
- Gas or fuel systems
Key Features
- Flame-free press connection — no welding, threading, or hot work permits required
- Carbon steel construction with zinc coating — corrosion-resistant for long-term durability
- Leak-proof press system performance with EPDM o-ring (green dot, rated to 250°F)
- Compatible with major press tools — Ridgid, Milwaukee, DeWalt
- Reduces install time and labor cost on every connection
- “Remove After Press” visual indicator confirms pressed connections
- Designed for commercial and industrial jobsite use
- FM Class 1920 and UL certified
Specifications
| Property | Value |
|---|---|
| Material | Carbon Steel (Zinc-Coated) |
| Connection Type | Press-to-Connect |
| O-Ring | EPDM (Green Dot) |
| Pipe Compatibility | ASTM A53 Schedule 10–40 Carbon Steel |
| Cold Working Pressure | 200 psi max |
| Operating Temperature | 0°F to 250°F (-17°C to 121°C) |
| Vacuum Rating | 29.2 in/Hg at 68°F |
| Certifications | FM Class 1920, ANSI/CAN/UL 213, UL 852, ULC/ORD C 199S, UMC |
Compatible Press Tools
- Milwaukee: M-12 Force Logic (up to 1"), M-18 Force Logic (up to 2") with IPS-P Jaws
- Ridgid: RP240/241 with MegaPress Jaws (up to 1"); RP350/351/342-XL with MegaPress Rings (up to 2")
- DeWalt: DCE200 with Milwaukee or Ridgid compatible jaws and rings
Frequently Asked Questions
Is this compatible with Ridgid or Milwaukee press tools?
Yes. This carbon steel press fitting is compatible with standard press tools including Ridgid, Milwaukee, and DeWalt systems using the appropriate jaws or rings.
Can this be used for potable water?
No. LegendPress CSW fittings are not approved for potable (drinking) water systems.
What systems is this designed for?
Hydronic heating, hydronic cooling, fire sprinkler, and closed-loop mechanical piping systems using non-potable water.
Does this require welding or threading?
No. This is a flame-free press fitting. Cut the pipe, deburr, mark insertion depth, and press. No open flame, no hot work permits.
Is this suitable for repair work?
Yes. Ideal for retrofit, maintenance, and fast-turnaround repair jobs on existing carbon steel piping systems.
Why Contractors Choose This Product
- Eliminates welding and threading — faster installation, lower labor cost, no permits
- FM Class 1920 and UL certified for fire sprinkler and hydronic systems
- Works with the press tools already on your truck
- Visual press indicator eliminates guesswork on the job
- Zinc-coated carbon steel handles demanding commercial and industrial environments
✔ Bulk Pricing Available
✔ Fast Shipping from Multiple U.S. Warehouses
✔ Built for Contractors, Not DIY
Built for contractor use and real jobsite conditions, this carbon steel press fitting delivers fast, reliable performance where it matters most. Ships same day from U.S. warehouses and ready for immediate installation.
Ideal for plumbing contractors, maintenance departments, and commercial facilities requiring fast, reliable press connections.
Technical Resources: Installation Guide (PDF)
