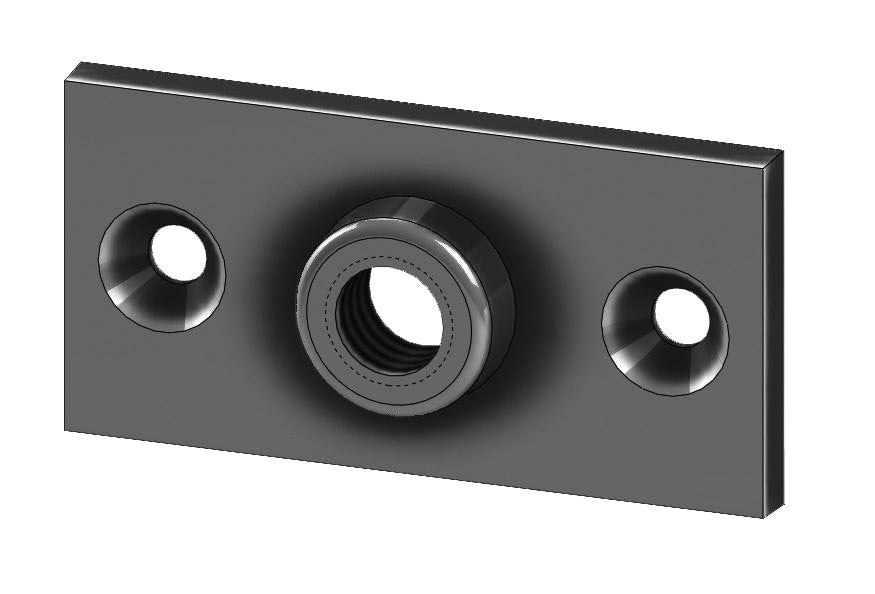

Hanger Flange Plate T-304 Stainless Steel Import

The structural attachment point for rod-hung pipe. The hanger flange plate bolts to a ceiling, beam, or wall and provides a threaded connection for a hanger rod — anchoring rod-suspended pipe to the structure above. Type-304 stainless steel.

• Bolts to structure as the upper attachment for a hanger rod
• Threaded connection accepts standard hanger rod
• Type-304 stainless steel for corrosion resistance in wet and washdown environments
• Pairs with clevis, split ring, swivel ring, and band hangers
• Manufactured to MSS SP-58 pipe support standards

Overview

The hanger flange plate is the upper attachment that ties a hanger rod to the building. It fastens to a concrete deck, beam, or wall through its mounting holes and provides a threaded connection for the rod, which then carries a clevis, split ring, or other hanger below. Type-304 stainless steel construction resists corrosion in wet, washdown, and chemical-service environments.

Common Uses

• Anchoring hanger rod to ceilings, decks, beams, and walls
• Upper attachment for rod-suspended pipe hangers
• Food, pharmaceutical, and process facility piping
• Wet and washdown environments

Key Features

• Mounting holes for fastening to structure
• Threaded connection for hanger rod
• Type-304 stainless steel — corrosion resistant
• Manufactured to MSS SP-58 pipe support standards

Specifications

Frequently Asked Questions

What is a hanger flange plate used for?

It anchors a hanger rod to the building structure, serving as the upper attachment point for rod-suspended pipe hangers.

When should I use 304 stainless?

Type-304 stainless resists corrosion in wet, washdown, and many chemical environments — common in food, pharma, and process facilities.
