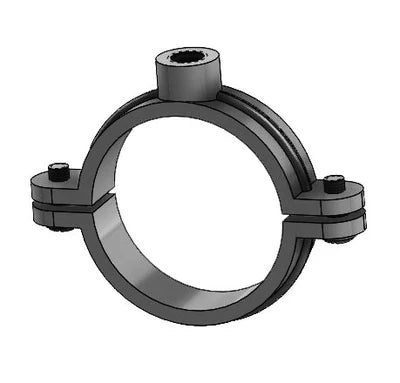

Split Ring T-316 Stainless Steel Import 4"

Suspend pipe from above — the standard clevis alternative. Split ring hangers clamp around the pipe and hang from a threaded rod — the standard method for suspending pipe from structure above. Stainless Steel finish.

• Split ring design — installs around pipe and secures with bolt
• Hangs from threaded hanger rod (3/8" or 1/2" rod typical)
• Supports horizontal pipe runs suspended from structure above
• Stainless steel for corrosion resistance in wet or chemical environments
• MSS SP-58 Type 8 compliant

Overview

Split Ring T-316 Stainless Steel Import 4" is a split ring hanger for suspending horizontal pipe runs from threaded rod and structure above. Split ring hangers are one of the most common pipe suspension methods in commercial and industrial mechanical systems — they install quickly, provide reliable support, and are adjustable via the threaded rod length. The split ring bolts together around the pipe and connects to the hanger rod via a clevis or eye nut.

Common Uses

• Suspending horizontal pipe runs from concrete decks and structural steel
• Commercial plumbing, HVAC, and mechanical piping systems
• Water, steam, gas, and refrigerant pipe suspension
• Institutional and industrial building mechanical systems
• Any application requiring rod-suspended pipe support

Key Features

• Split ring — bolts together around pipe for secure clamping
• Threaded rod connection (standard 3/8" or 1/2" rod)
• Height adjustable via rod length
• Stainless steel — corrosion resistant
• MSS SP-58 Type 8 compliant

Specifications

Frequently Asked Questions

What is a split ring hanger used for?

Split ring hangers suspend horizontal pipe runs from threaded rods anchored to structure above — decks, beams, or joists. They are one of the most common pipe support methods in commercial construction.

What is the difference between a split ring and a hinge split ring?

A standard split ring bolts together around the pipe. A hinge split ring opens on a hinge for faster pipe installation — the ring swings open, pipe drops in, ring closes and bolts. Faster on long runs.

What rod size do split ring hangers use?

Most split ring hangers for common pipe sizes use 3/8" threaded rod. Larger sizes may require 1/2" rod. Check load tables for your specific pipe size and weight.

Why use copper-plated hangers on copper pipe?

Steel-to-copper contact creates galvanic corrosion that degrades the pipe. Copper-plated hangers eliminate this contact point.

Why Contractors Choose This Product

• Split ring is the standard for commercial pipe suspension — every mechanical contractor stocks them
• Height adjustable via rod length — no pre-cutting or fixed-dimension hardware needed
• Stainless steel handles wet and chemical environments where galvanized corrodes
• MSS SP-58 compliant — meets the pipe support standard on commercial and institutional projects
